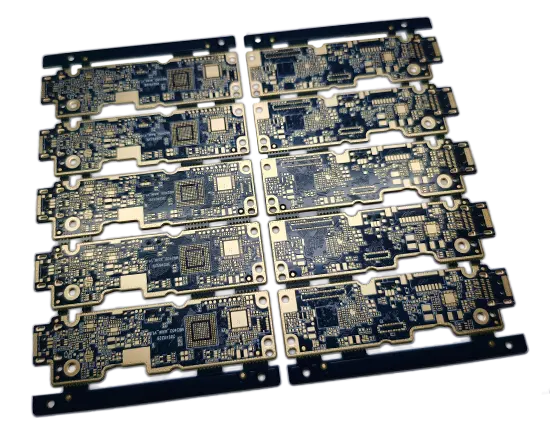

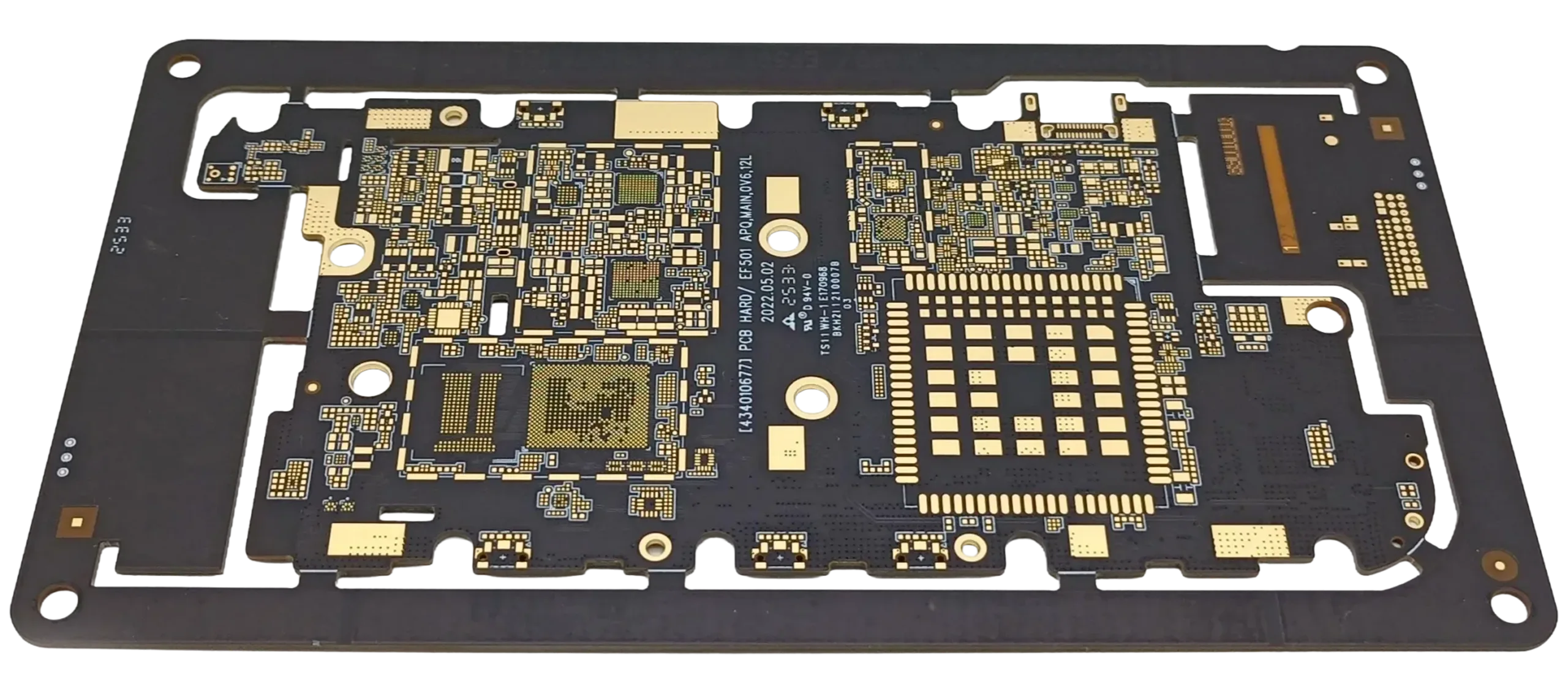

What is HDI PCB?
High-Density Interconnect (HDI) PCBs are specialized printed circuit boards designed for miniaturized and high-speed electronic devices. Unlike traditional PCBs, HDI boards use finer traces, smaller vias, and multiple layers to maximize performance while minimizing size.
Microvias
Enable complex, high-density connections between layers.
Fine Lines & Spacing
Supports advanced component layouts and compact designs.
Reduced Size & Weight
Ideal for portable devices and wearables.
Enhanced Performance
Shorter signal paths improve speed and signal integrity.

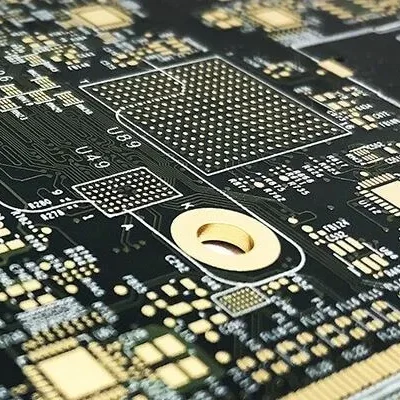

Our HDI PCB Manufacturing Capabilities
At Benlida, we deliver advanced HDI PCB solutions that combine precision, reliability, and high-density design for modern electronics.

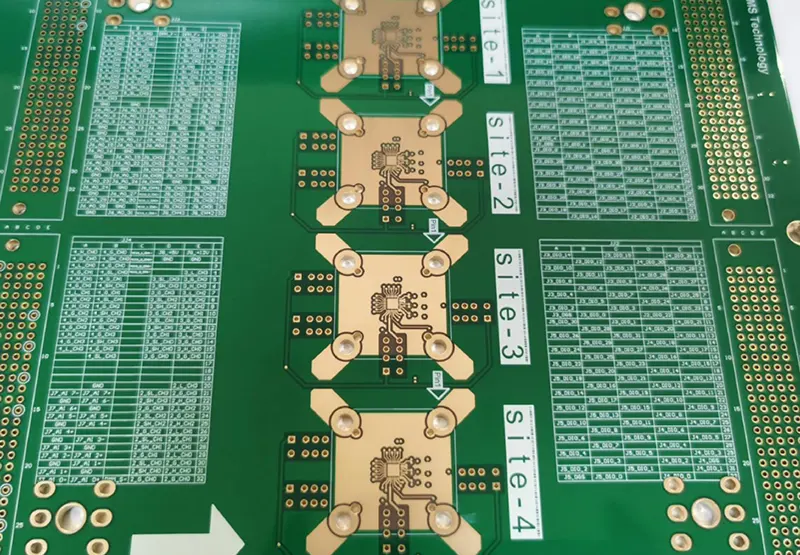

Types of HDI PCBs
FR-4 PCB by Benlida: Durable, Affordable, and Built for Every Electronic Need.

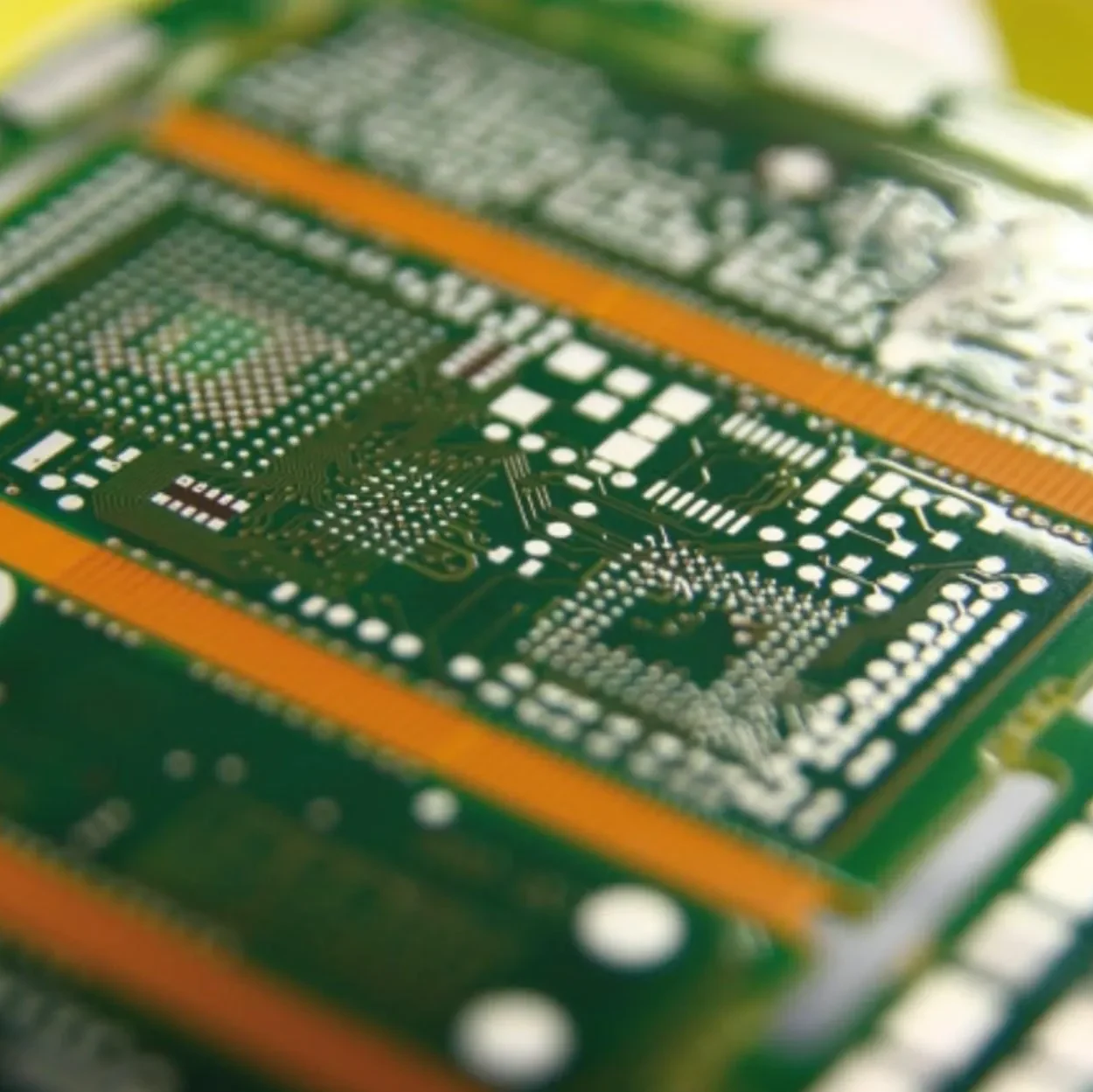

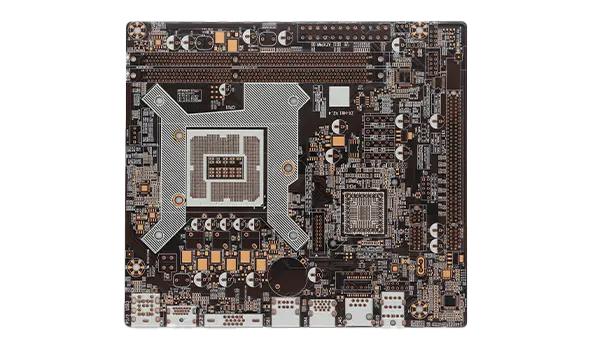

Single-Sided Microvia HDI
Reliable and cost-effective, ideal for general electronic devices and everyday applications with high quality.
Get a Quote
Double-Sided Microvia HDI
Designed for high-temperature environments, offering enhanced thermal stability and mechanical performance.
Get a Quote

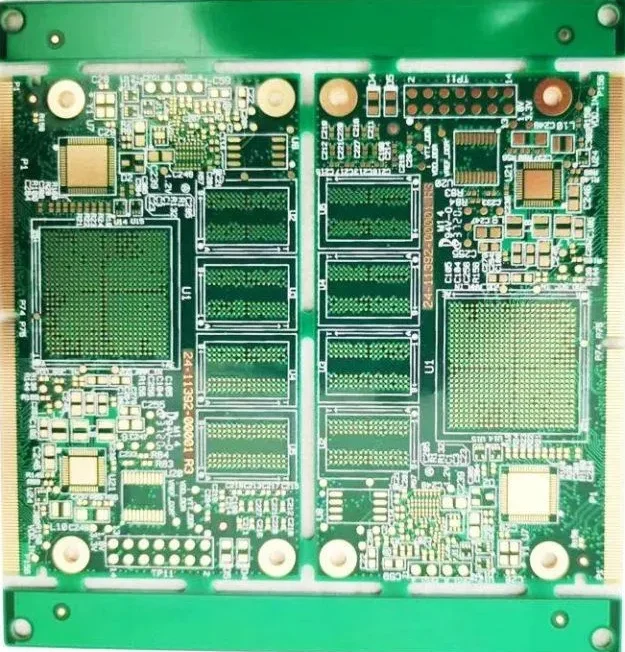

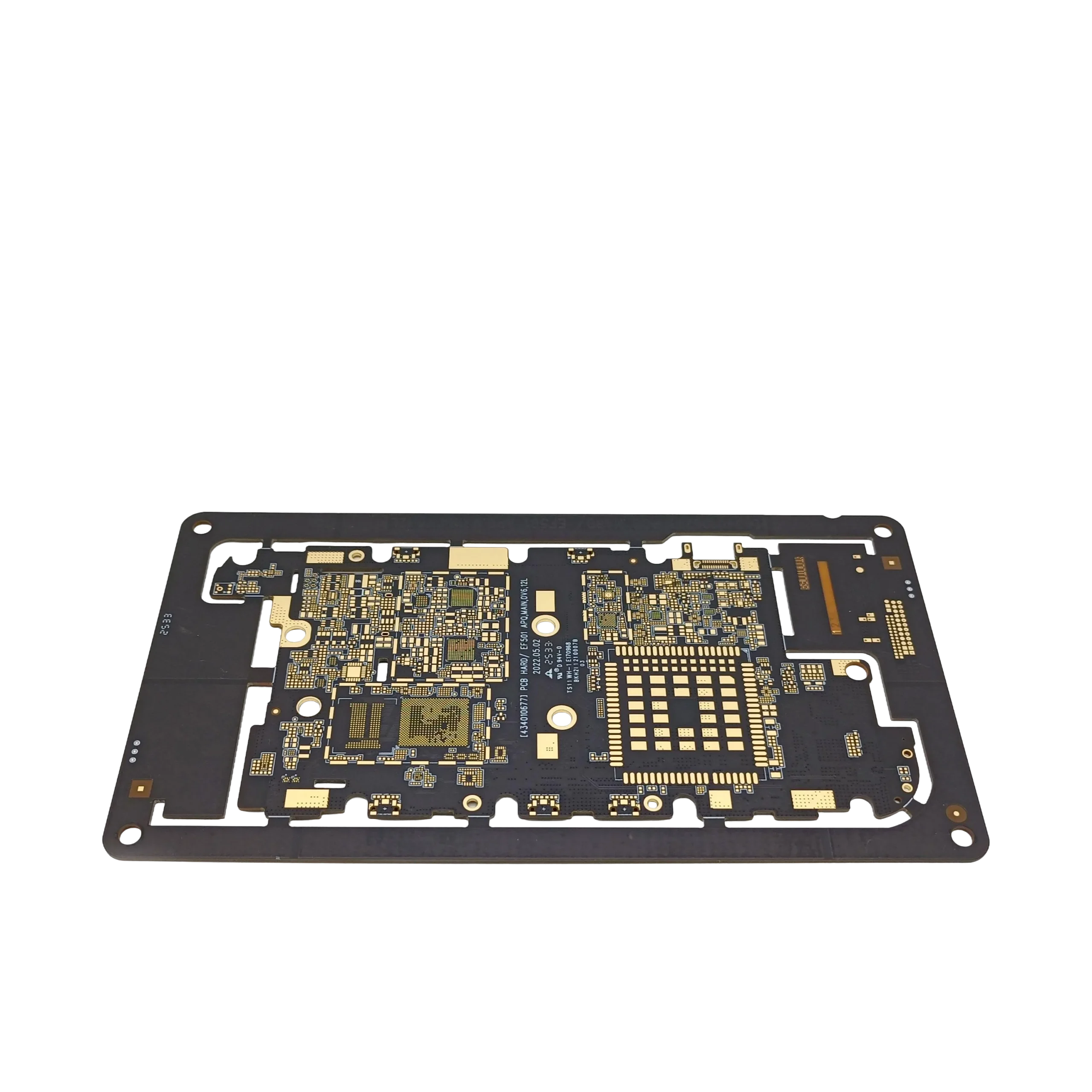

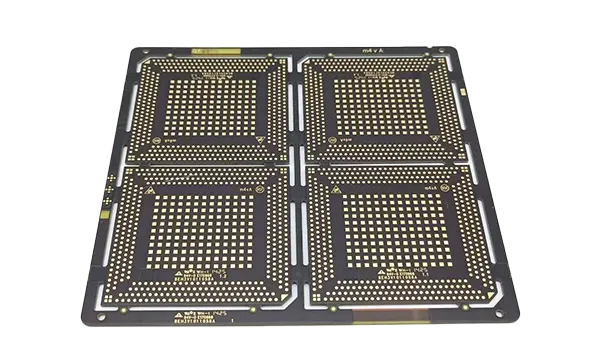

Stacked Microvia HDI
Optimized for fast signal transmission and reduced loss in RF and high-speed applications.
Get a Quote

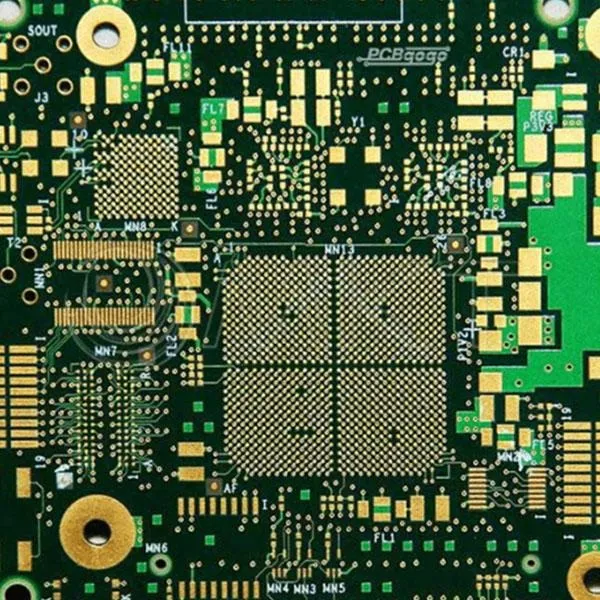

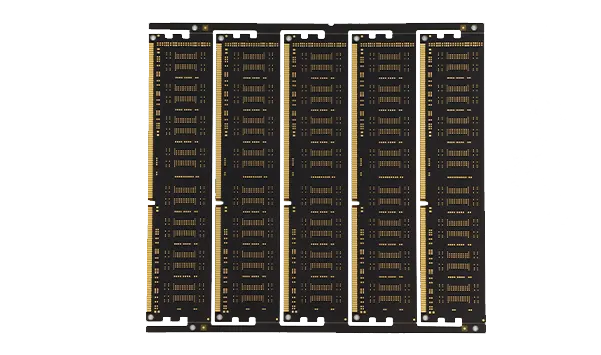

Sequential Laminated HDI
Multiple layers enable compact, complex circuits for advanced electronics and high-density designs.
Get a QuoteHDI PCB Manufacturing Process
Benlida FR-4 PCB: Expertly Crafted with Precision at Every Step, from Design and Lamination to Testing and Delivery.

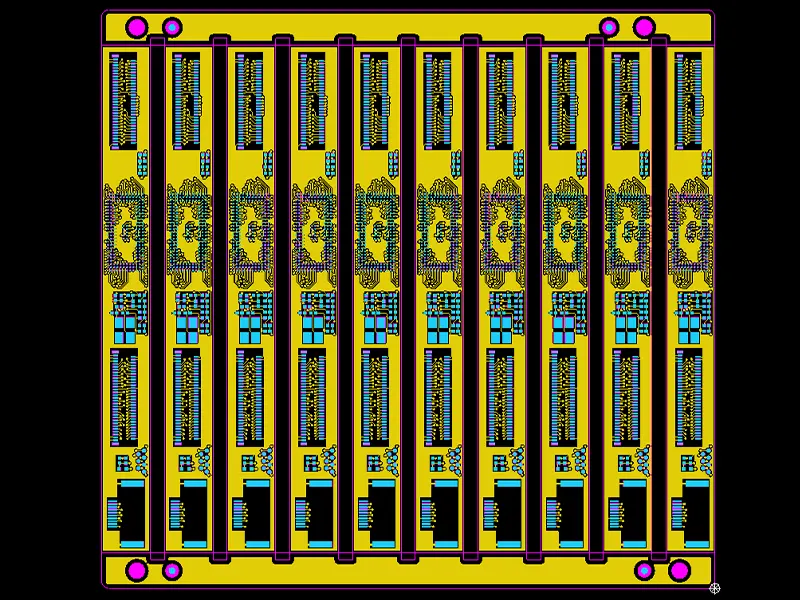

PCB Design & DFM Review
Ensure optimal design and manufacturability before production to prevent errors and improve performance.
Material Preparation
Select and cut FR-4 substrate sheets to the required size and specifications.

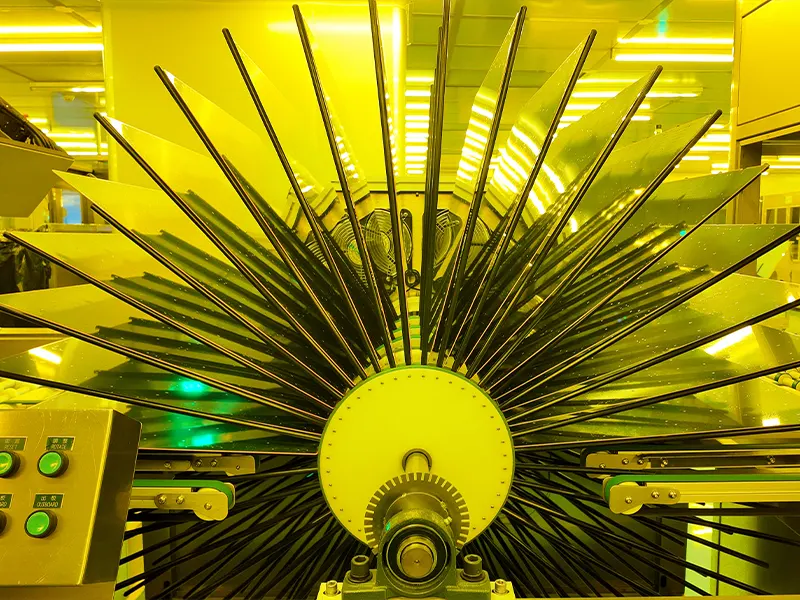

Inner Layer Imaging
Transfer circuit patterns onto inner copper layers using photolithography for precise circuit definition.
Etching Process
Remove unwanted copper from inner layers to create the desired circuit patterns.
Layer Lamination
Bond multiple inner layers together under heat and pressure to form the multilayer board structure.

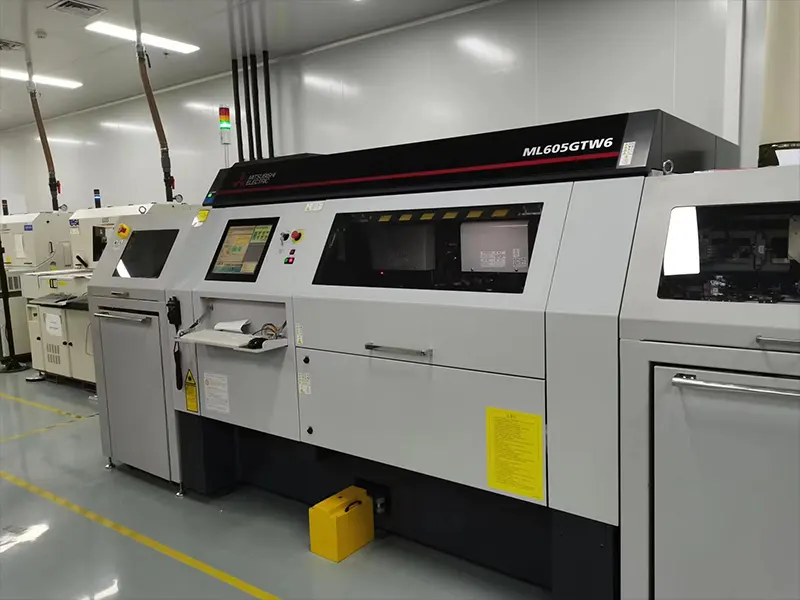

Drilling & Via Formation
Drill holes for component leads and electrical connections between PCB layers.
Copper Plating
Plate drilled holes and surface areas with copper to ensure electrical conductivity.
Solder Mask Application
Apply protective solder mask to prevent short circuits and protect traces.
Surface Finishing
Apply finishes like HASL or ENIG to protect copper and improve solderability.
Electrical Testing & Inspection
Test all circuits for continuity and defects to ensure quality and reliability.

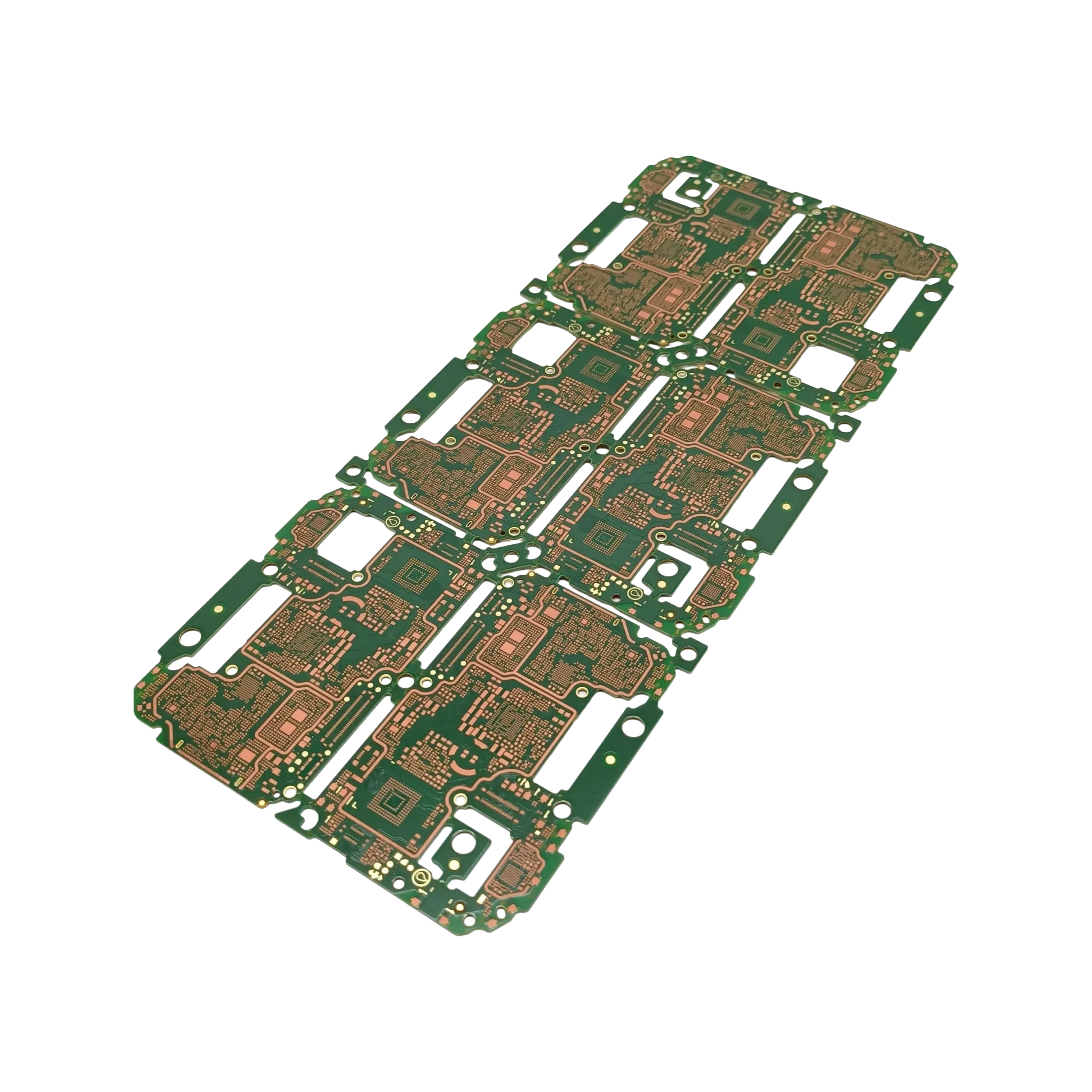

HDI PCB Surface Finish
Benlida FR-4 PCB Surface Finishes: Perfect Protection, Superior Solderability, Every Time.
HASL
A traditional, cost-effective finish using molten solder, ideal for general-purpose PCBs.
Lead-Free HASL
Environmentally friendly version of HASL, meeting RoHS standards for lead-free electronics.
ENIG
Provides a flat, gold-coated surface for excellent solderability and reliable high-frequency performance.
Immersion Tin
Offers uniform, smooth surface with good solderability for short to medium-term applications.
Immersion Silver
Provides high conductivity and excellent surface planarity for precision assembly and fine-pitch parts.
OSP
Organic solderability preservative protects copper while remaining flat, perfect for fine-pitch components.
HDI PCB Design Guides
Designing HDI PCBs requires careful consideration of layer structure, via technology, and signal integrity. Following best practices ensures manufacturability, reliability, and optimal performance.
Designing HDI PCBs requires careful consideration of layer structure, via technology, and signal integrity. Following best practices ensures manufacturability, reliability, and optimal performance.
Key steps ensuring precision, reliability, and consistent multilayer PCB production quality.
Symmetric Stackup
Plan the number of signal, power, and ground layers to optimize routing density. Use symmetric stack-ups to minimize warping and improve signal integrity. Sequential lamination is recommended for high-layer-count HDI boards.
Trace Width and Spacing
Maintain minimum trace width according to PCB manufacturer capabilities (Benlida: 50–75 µm / 2–3 mils for HDI). Ensure spacing between traces meets signal integrity and manufacturing requirements. High-speed signals may require controlled impedance traces.
Via Selection
Choose via types based on layer connectivity and density: Blind vias: Connect outer to inner layers. Buried vias: Connect internal layers. Stacked microvias: For high-density connections in multi-layer boards. Maintain proper aspect ratios to ensure reliable plating and soldering.
Component Placement
Place high-density components first to reduce routing complexity. Keep critical high-speed signals short and direct. Group similar components to simplify power distribution and routing.
Signal Integrity & Power Distribution
Use ground and power planes to reduce EMI and voltage drops. Maintain uniform trace impedance for high-speed signals. Decouple sensitive components with bypass capacitors close to pins.
Thermal & Mechanical Considerations
Optimize via size and copper thickness for heat dissipation. Avoid placing microvias under components that generate high thermal stress. Consider board warpage and stiffness in the stack-up design.
Design for Manufacturability (DFM)
Follow your manufacturer’s minimum drill, trace, and spacing limits. Avoid microvia misalignment by keeping via-in-pad within capability limits. Ensure solder mask and silkscreen clearance comply with assembly requirements.
Symmetric Stackup
Keep layers balanced to minimize board warpage.
Layer Count Planning
Allocate layers for signal, power, and ground planes carefully.
Microvia Placement
Place microvias strategically to reduce routing complexity.
Impedance Control
Critical for high-speed signals; use uniform layer thickness and dielectric spacing.
Thermal Management
Ensure power and ground planes are well-distributed to dissipate heat.
Manufacturability
Design within your manufacturer’s minimum drill size, aspect ratio, and lamination capability (Benlida supports 4–16+ layers with sequential lamination).
