PCB Manufacturing & PCB Assembly Capabilities
Benlida provides professional PCB manufacturing and assembly solutions, supporting customers from R&D prototypes to small and medium-volume production with reliable quality, fast delivery, and PCB production as fast as 24 hours and PCBA assembly as fast as 5 days.

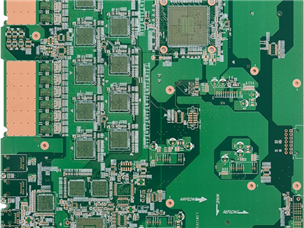

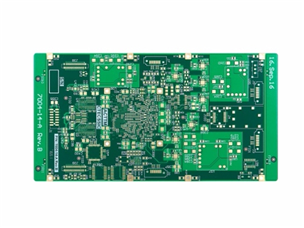

● Multilayer PCB

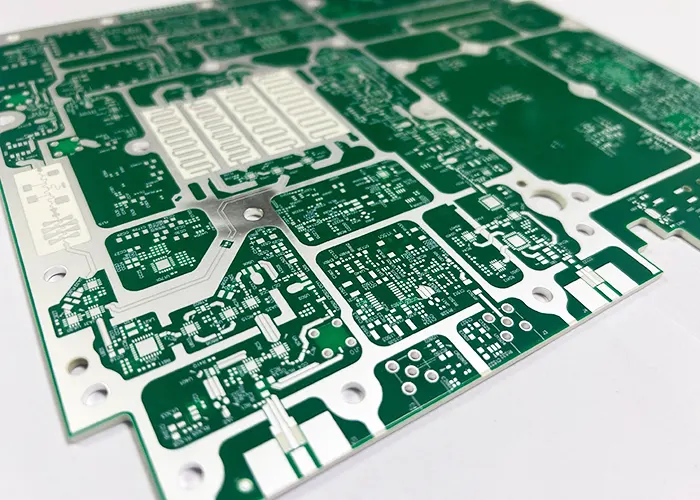

● HDI PCB
● High-Frequency PCB
● Flexible PCB
● SMT & DIP Assembly

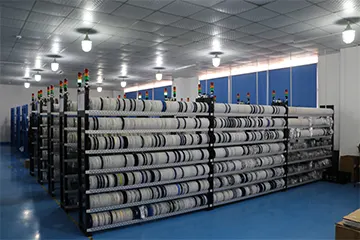

● Component Sourcing
● Prototype PCB Assembly
● Mass Production
● Global Procurement
● Quality Verification
● Alternative Solutions
● Cost Control
● Electrical Testing
● AOI Inspection
● Functional Testing
● Final Assembly

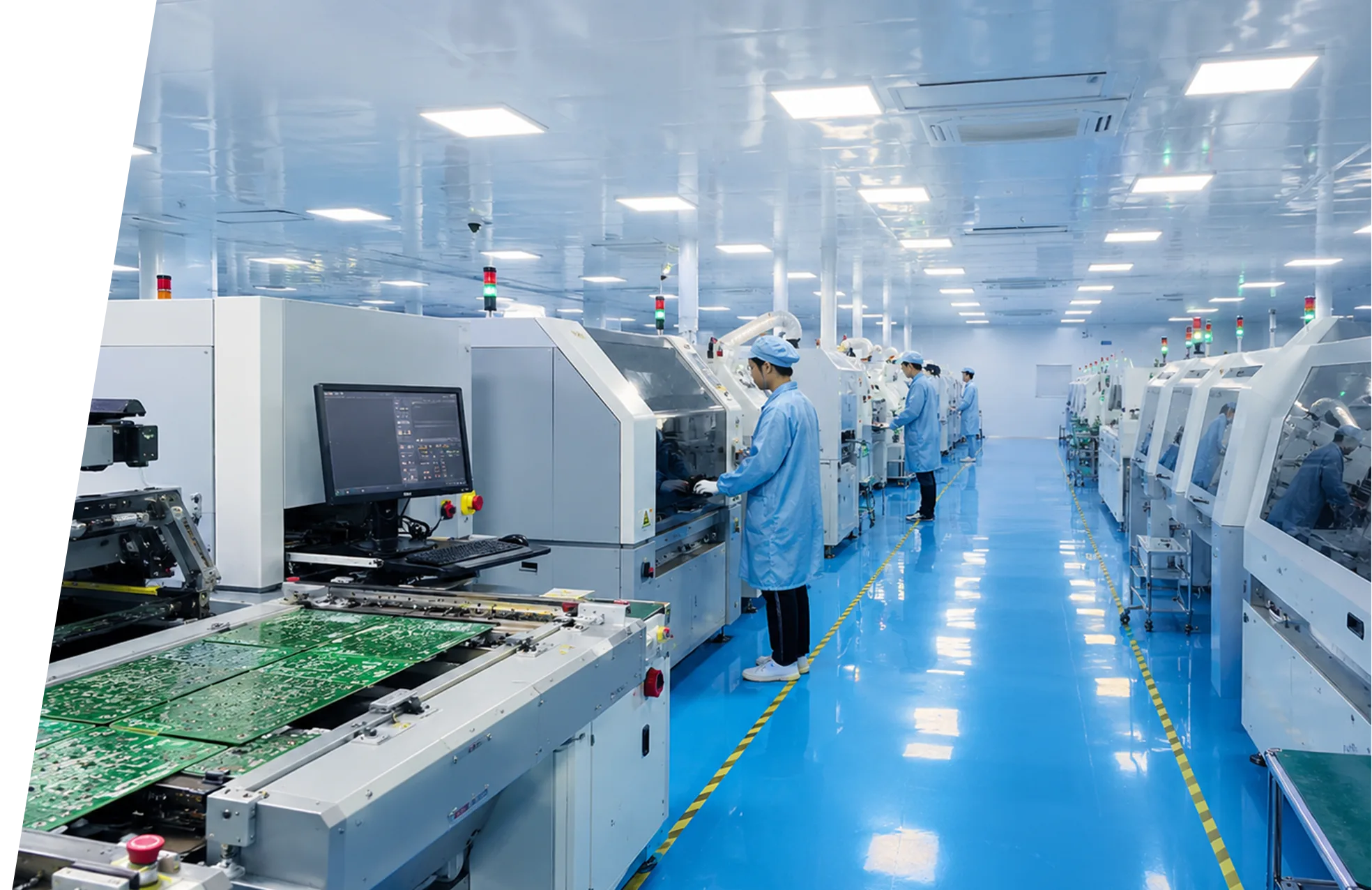

Advanced Manufacturing Capabilities

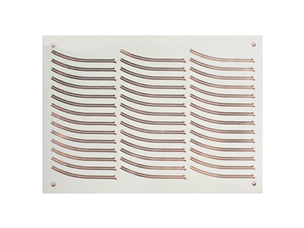

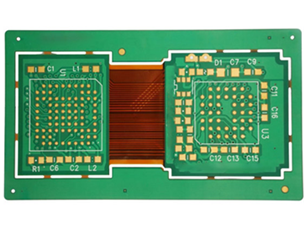

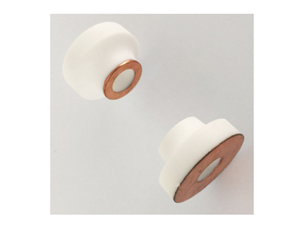

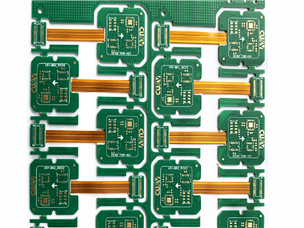

Benlida supports rigid, flexible, rigid-flex, HDI, high-frequency, heavy-copper, aluminum, and ceramic PCB projects. Depending on material and structure, capabilities include 1–32 layers, 0.4–4.5 mm finished thickness, up to 8 oz finished copper, trace and spacing down to 2/2 mil for selected advanced builds, 0.15 mm mechanically drilled holes, 0.10 mm laser microvias, ±10% controlled-impedance tolerance, and board sizes up to 609 × 889 mm. Available finishes include leaded or lead-free HASL, ENIG, OSP, immersion tin, immersion silver, and hard gold. These limits are not necessarily available in combination; feasibility is confirmed against the submitted revision before quotation.
- Layers: 1–32
- Materials: FR-4, High-Tg, PTFE & Polyimide
- Thickness: 0.4–4.5 mm
- Finished Copper: Up to 8 oz
- Trace / Space: Down to 2/2 mil
- Holes: 0.15 mm CNC / 0.10 mm Laser
- Impedance Tolerance: ±10%
- Board Size: Up to 609 × 889 mm
Benlida supports SMT, through-hole, and mixed assembly with single- or double-sided placement for prototype, low-volume, and production projects. Capabilities include assembly of 1–32-layer PCBs up to 460 × 500 mm, components down to 01005, and IC or BGA pitch down to 0.35 mm. Supply models include turnkey, partial-turnkey, and consigned components. Inspection, testing, programming, box build, and packaging are included when defined in the approved quotation.
- SMT, THT & Mixed Assembly
- Single- & Double-Sided Placement
- Minimum Package: 01005
- Minimum IC / BGA Pitch: 0.35 mm
- Turnkey, Partial & Consigned Supply
- 3D SPI, 2D/3D AOI & 3D X-Ray
- Flying Probe, ICT & Functional Test

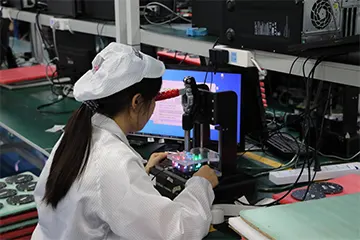

- Programming, Box Build & Packaging

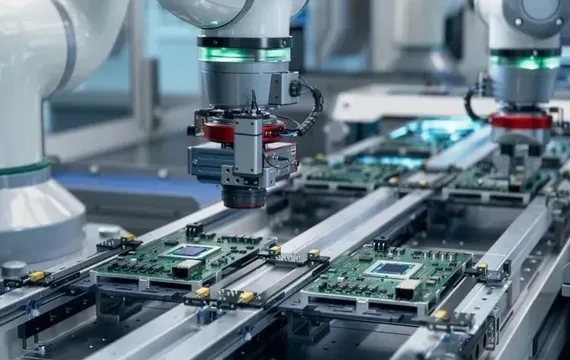

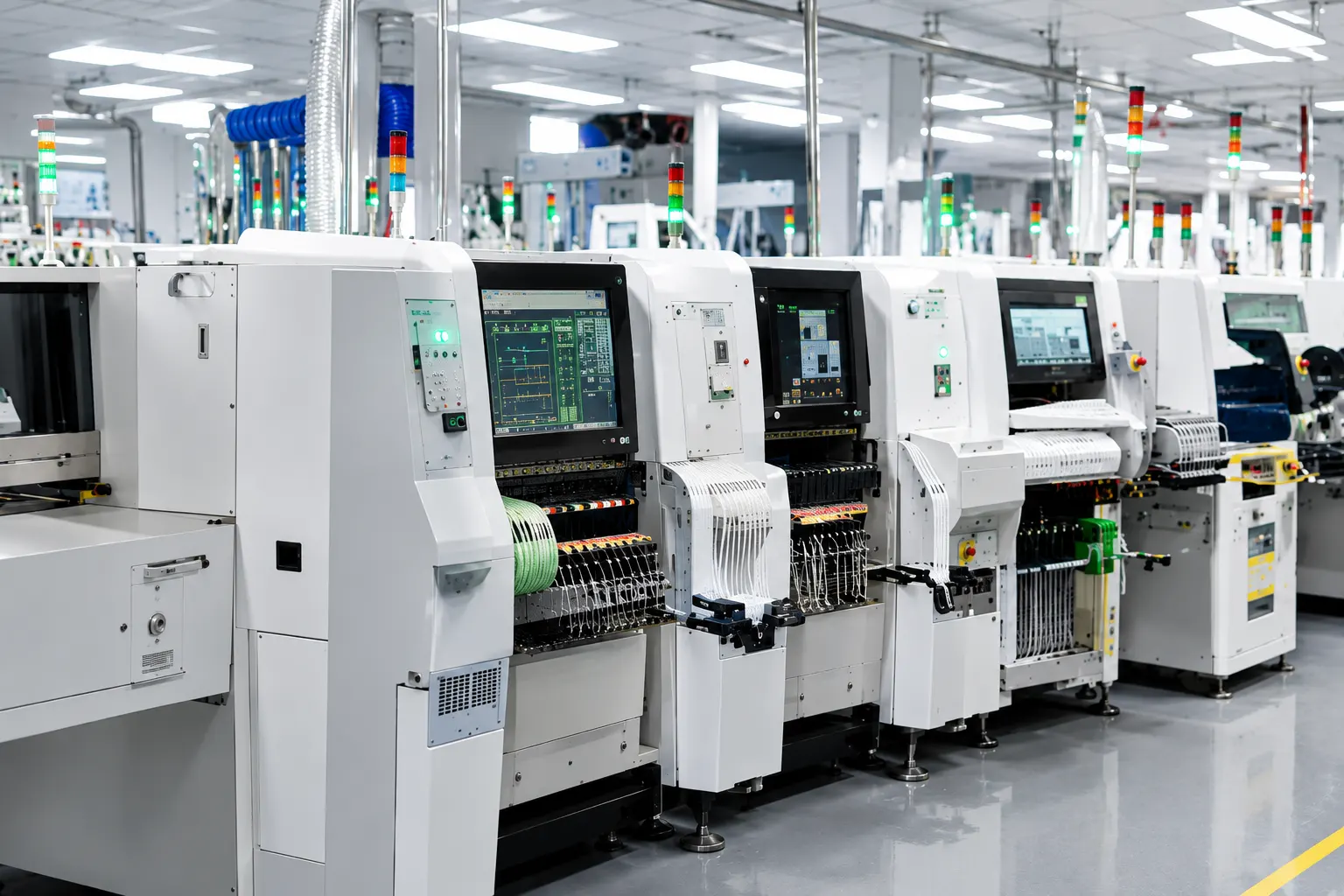

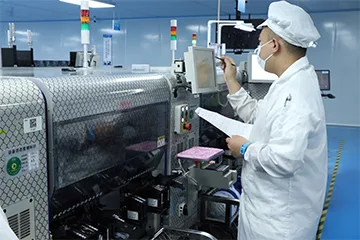

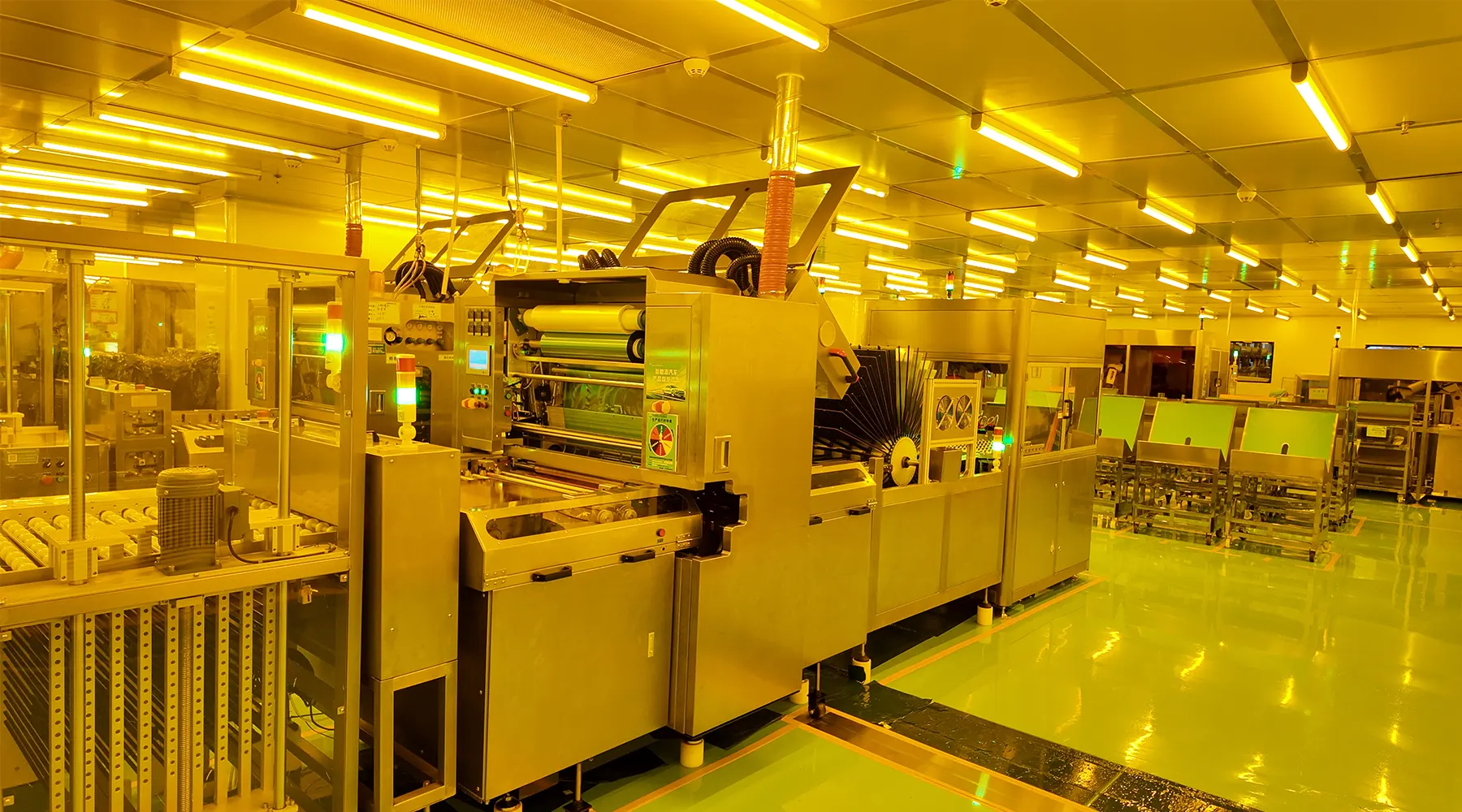

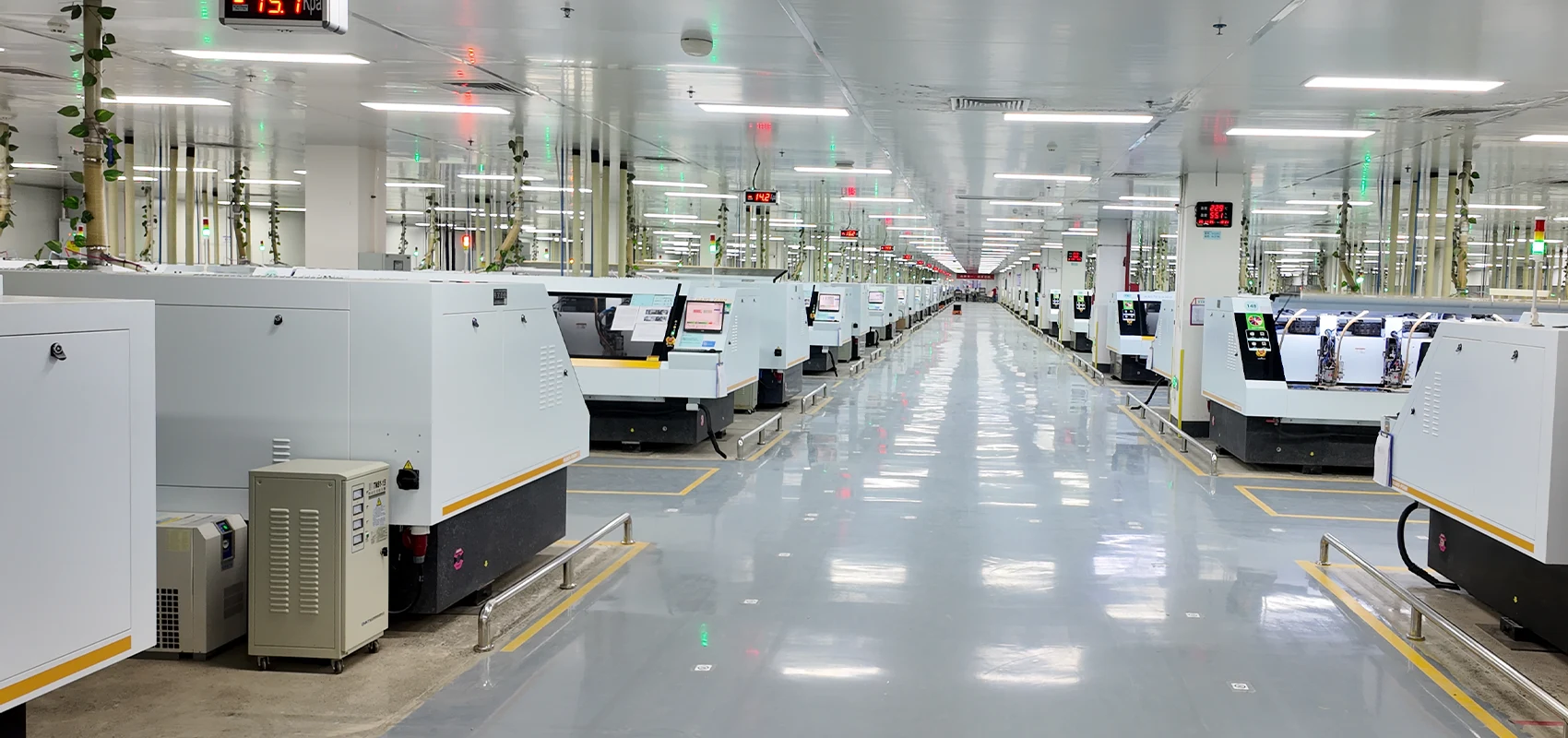

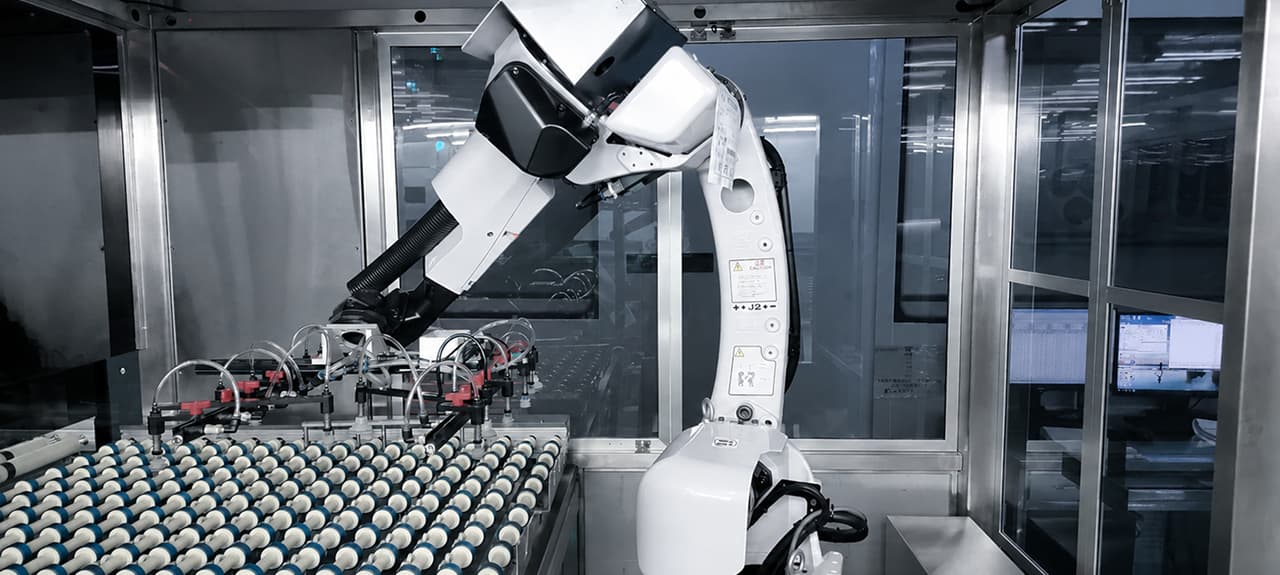

Advanced Equipment
Automated production lines for high efficiency and consistency
Advanced Manufacturing Capabilities
Benlida supports rigid, flexible, rigid-flex, HDI, high-frequency, heavy-copper, aluminum, and ceramic PCB projects. Depending on material and structure, capabilities include 1–32 layers, 0.4–4.5 mm finished thickness, up to 8 oz finished copper, trace and spacing down to 2/2 mil for selected advanced builds, 0.15 mm mechanically drilled holes, 0.10 mm laser microvias, ±10% controlled-impedance tolerance, and board sizes up to 609 × 889 mm. Available finishes include leaded or lead-free HASL, ENIG, OSP, immersion tin, immersion silver, and hard gold. These limits are not necessarily available in combination; feasibility is confirmed against the submitted revision before quotation.
- Layers: 1–32
- Materials: FR-4, High-Tg, PTFE & Polyimide
- Thickness: 0.4–4.5 mm
- Finished Copper: Up to 8 oz
- Trace / Space: Down to 2/2 mil
- Holes: 0.15 mm CNC / 0.10 mm Laser
- Impedance Tolerance: ±10%
- Board Size: Up to 609 × 889 mm
Benlida supports SMT, through-hole, and mixed assembly with single- or double-sided placement for prototype, low-volume, and production projects. Capabilities include assembly of 1–32-layer PCBs up to 460 × 500 mm, components down to 01005, and IC or BGA pitch down to 0.35 mm. Supply models include turnkey, partial-turnkey, and consigned components. Inspection, testing, programming, box build, and packaging are included when defined in the approved quotation.
- SMT, THT & Mixed Assembly
- Single- & Double-Sided Placement
- Minimum Package: 01005
- Minimum IC / BGA Pitch: 0.35 mm
- Turnkey, Partial & Consigned Supply
- 3D SPI, 2D/3D AOI & 3D X-Ray
- Flying Probe, ICT & Functional Test
- Programming, Box Build & Packaging
Advanced Equipment
Automated production lines for high efficiency and consistency

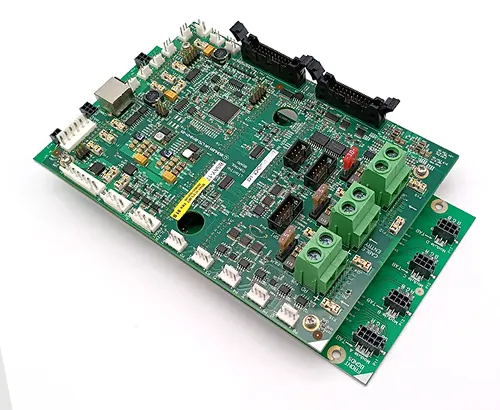

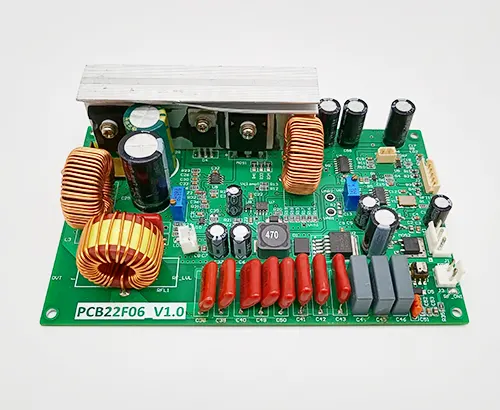

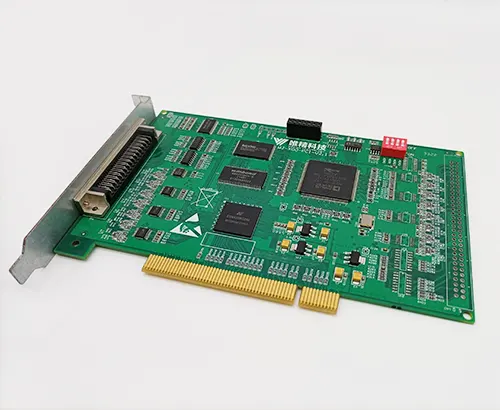

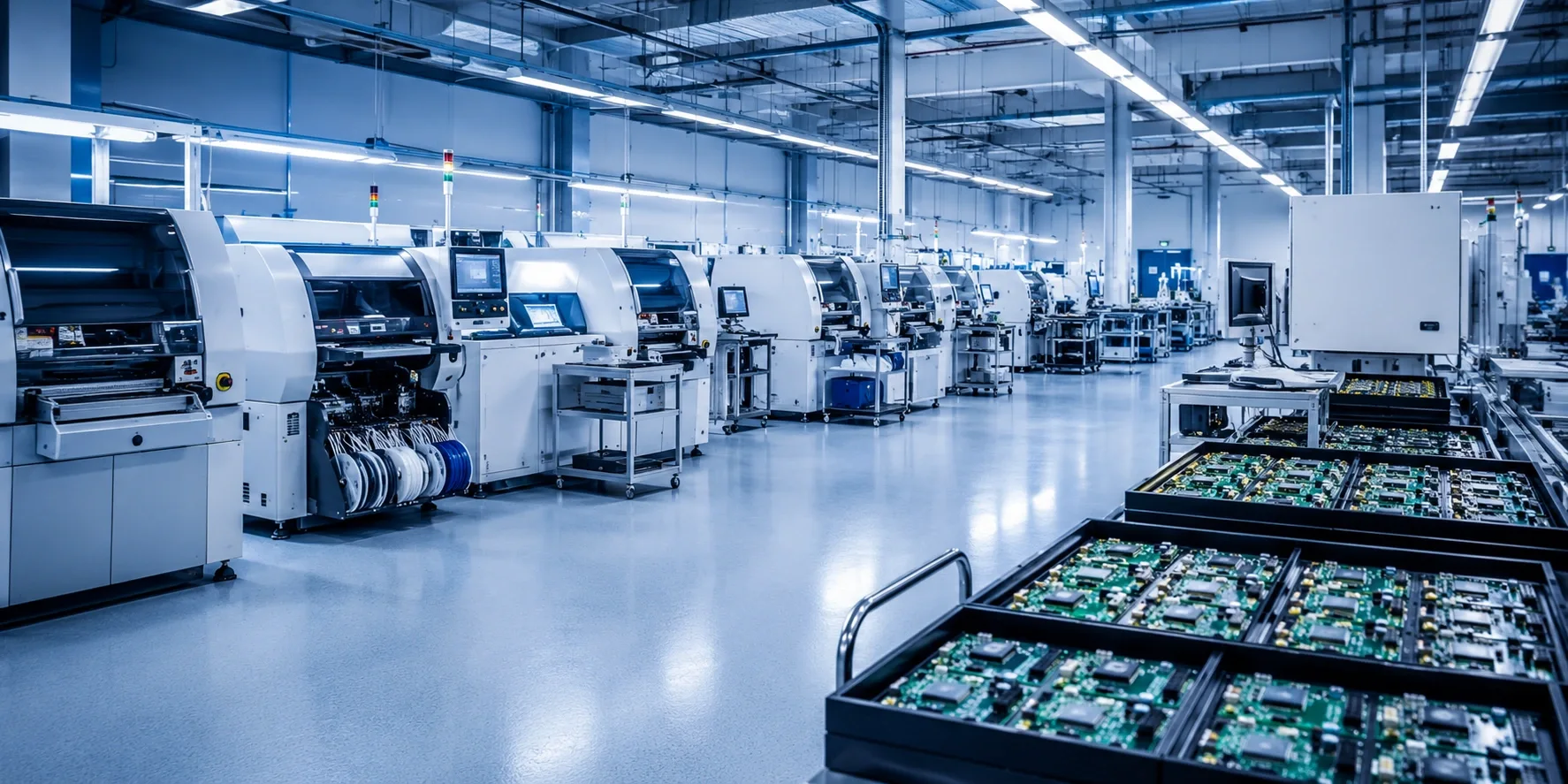

PCB Assembly Services & Capabilities
Benlida Circuit provides flexible PCBA solutions for prototypes, low-volume production, and customized assembly needs. For agreed assembly projects, the scope may include component sourcing, assembly, and customer-defined inspection or testing requirements.

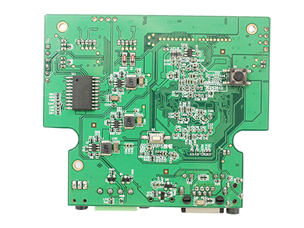

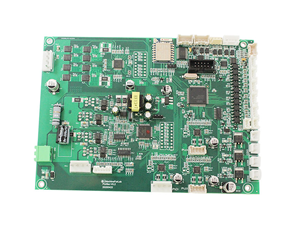

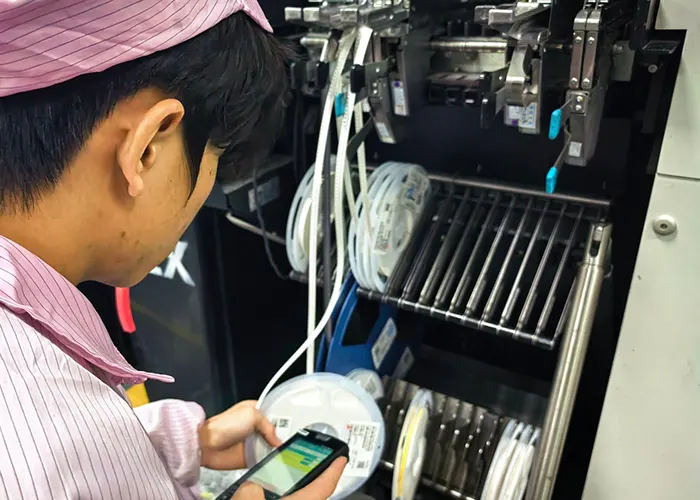

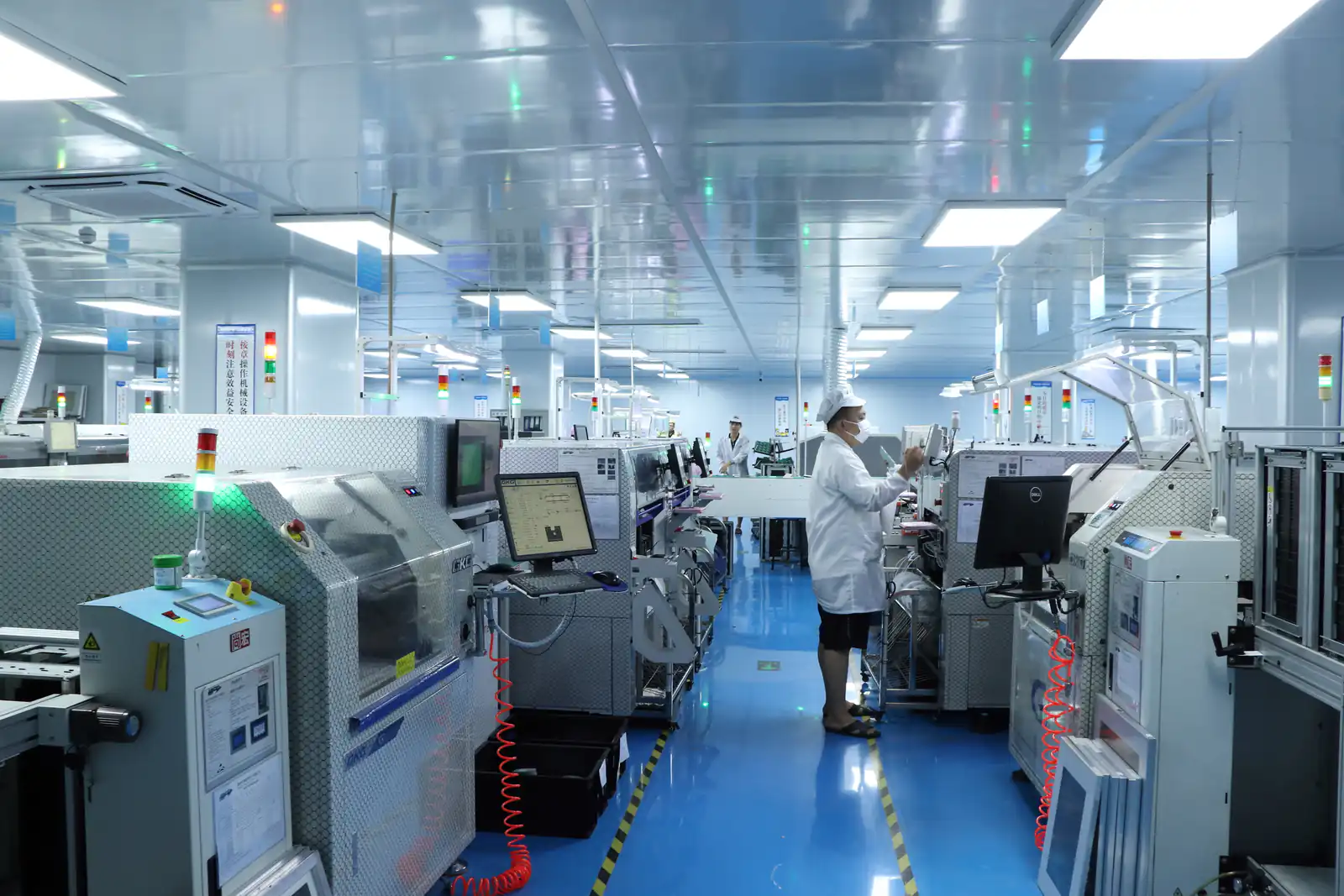

SMT, THT & Mixed Assembly

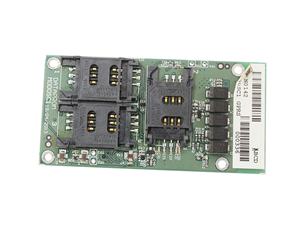

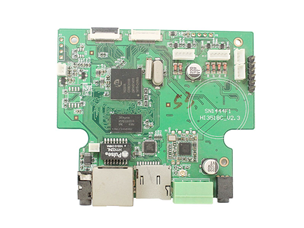

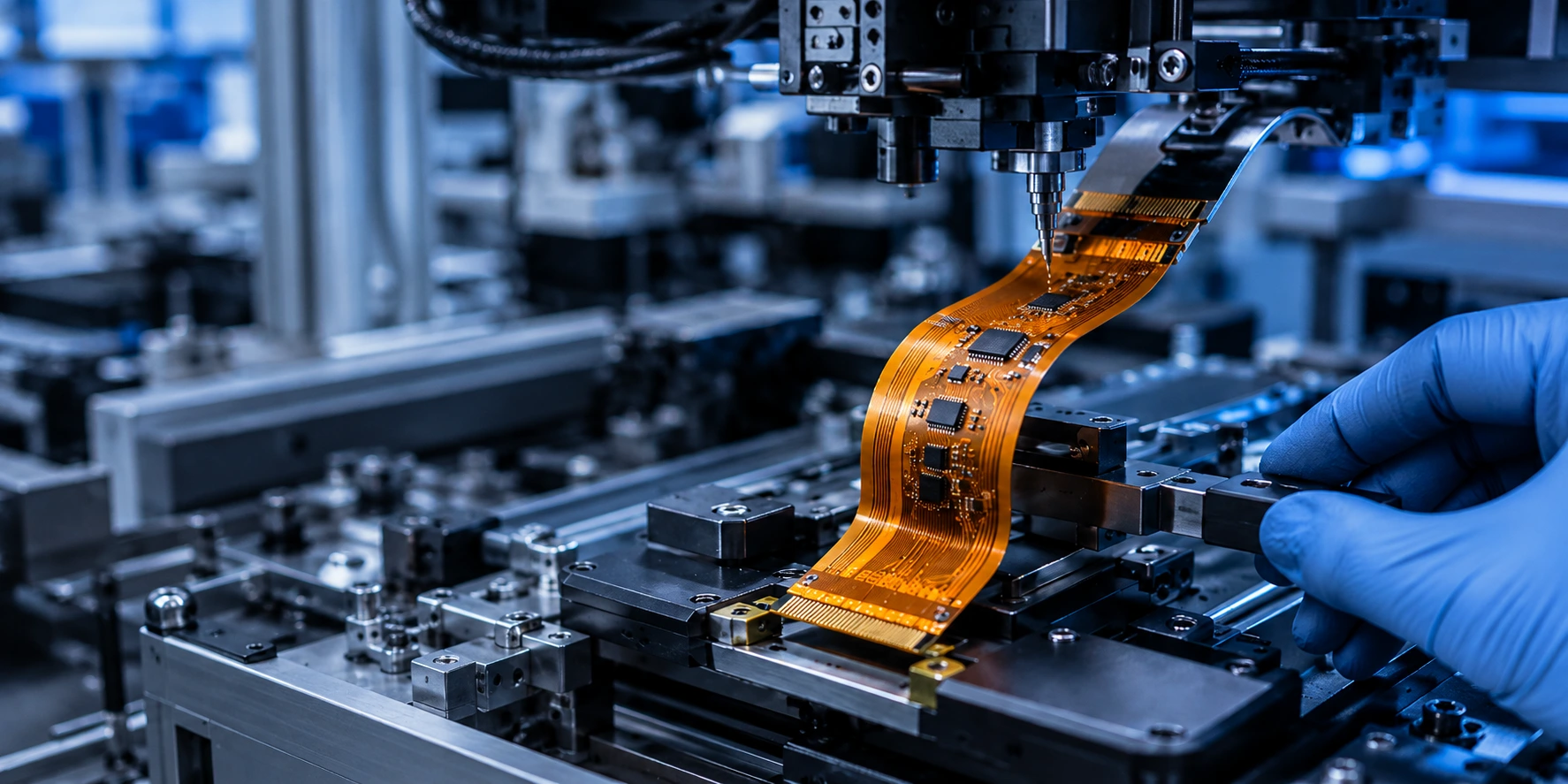

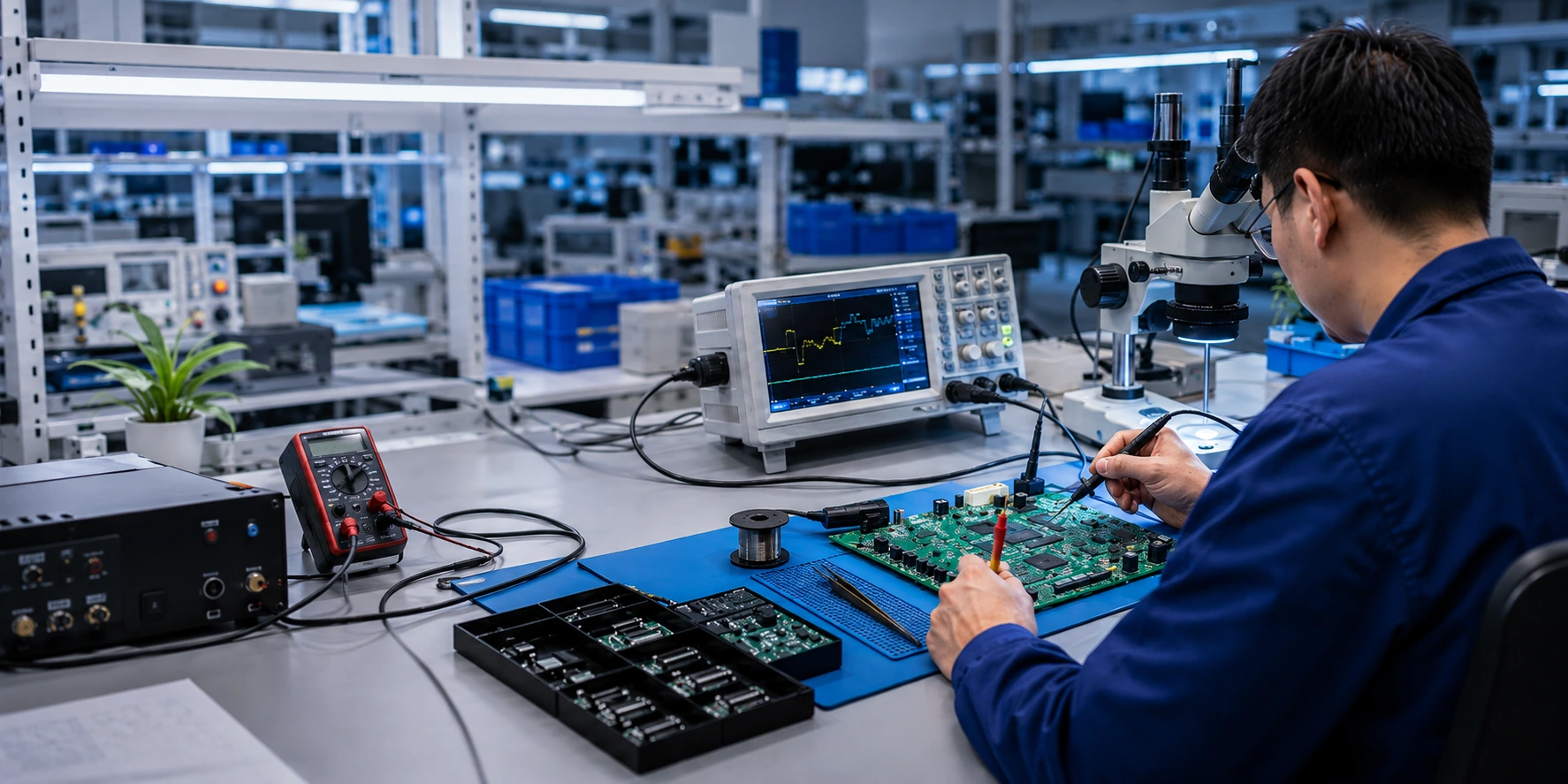

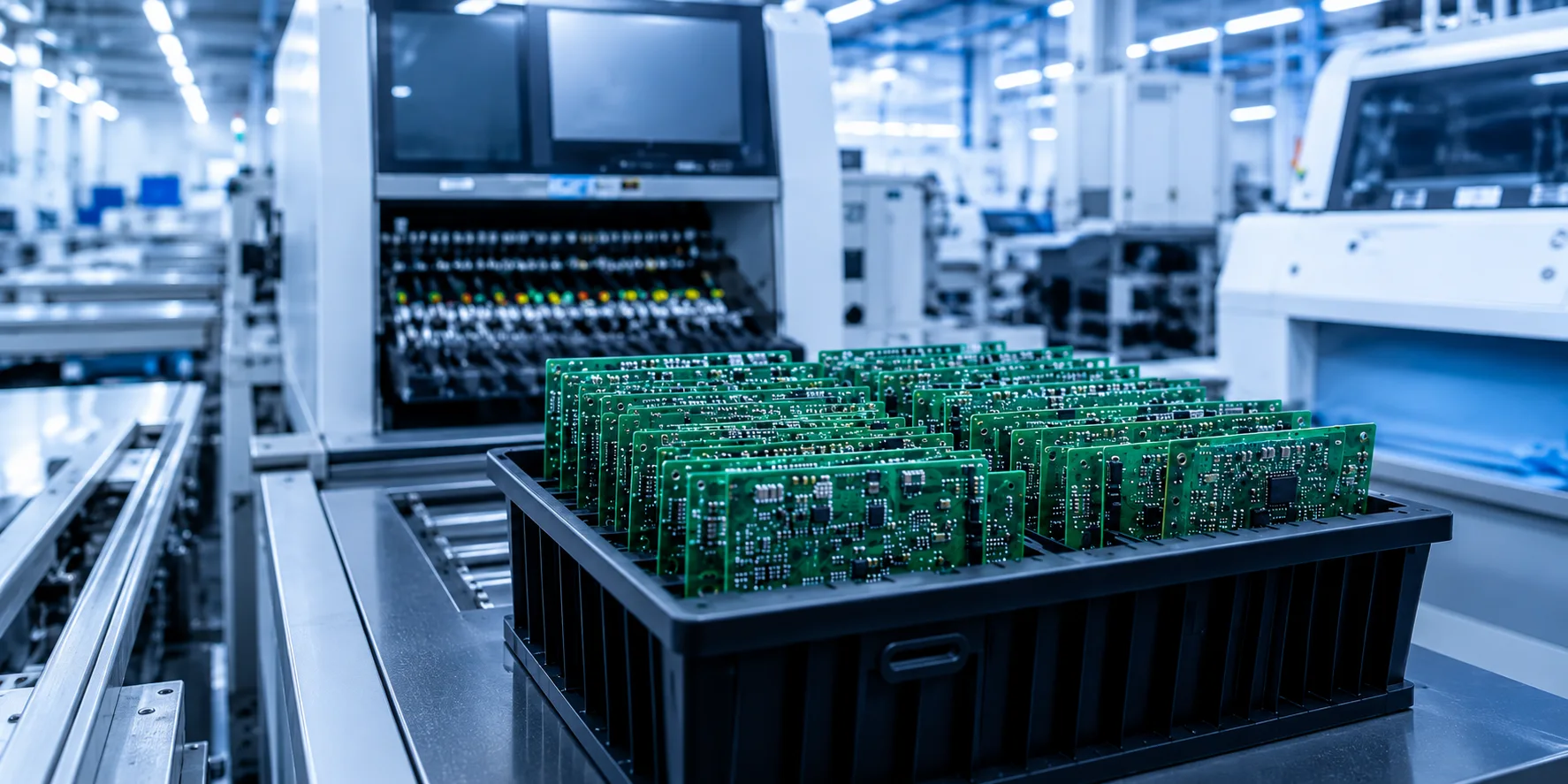

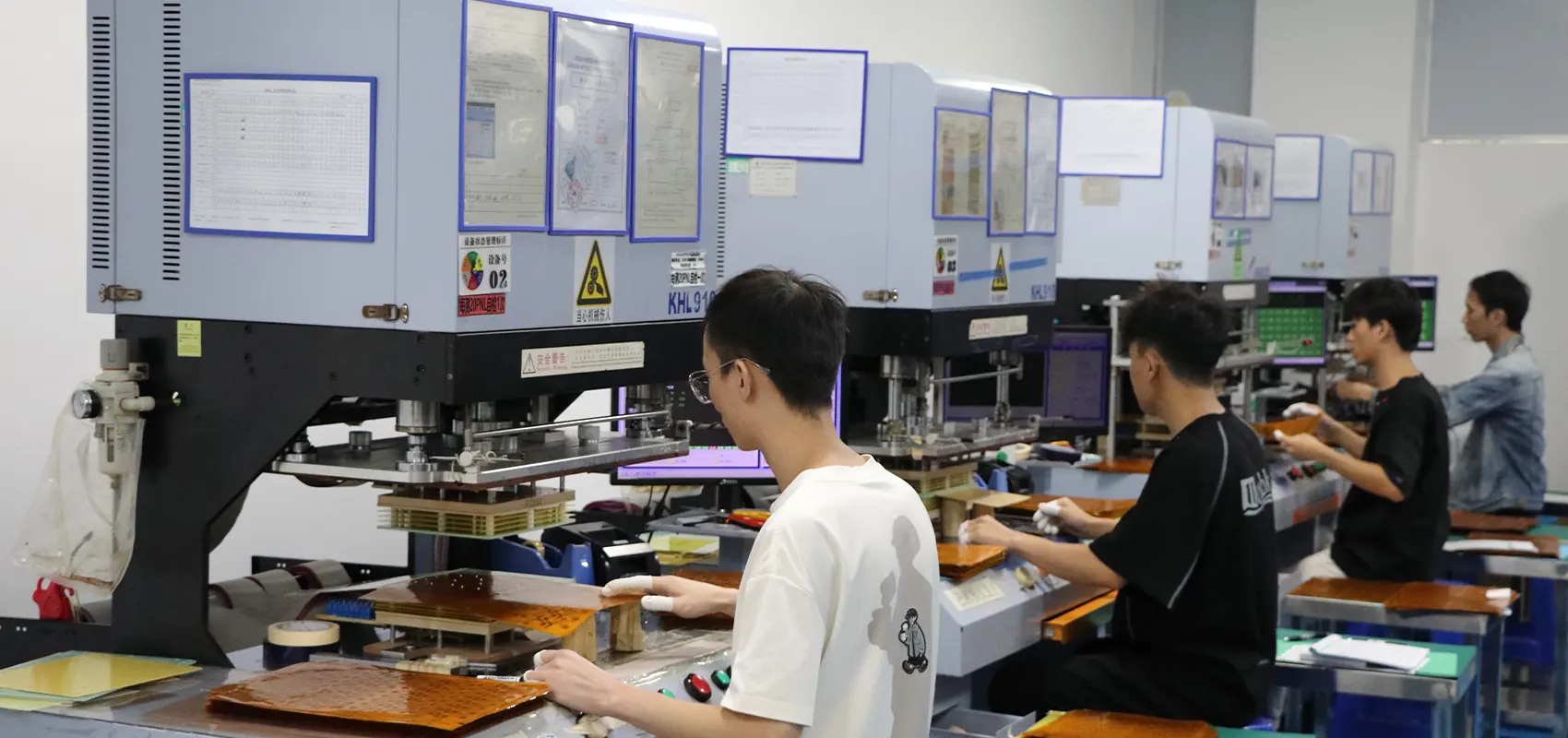

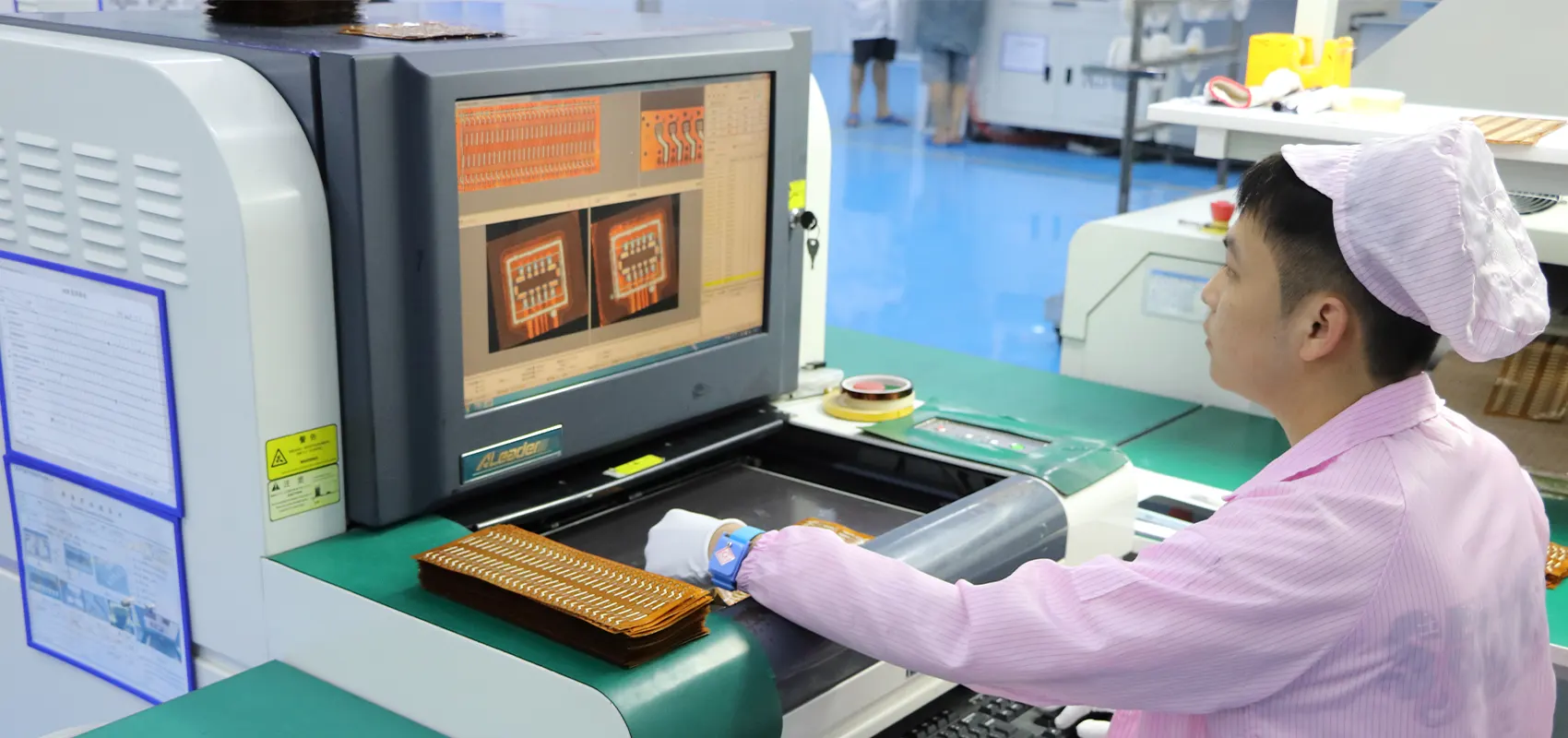

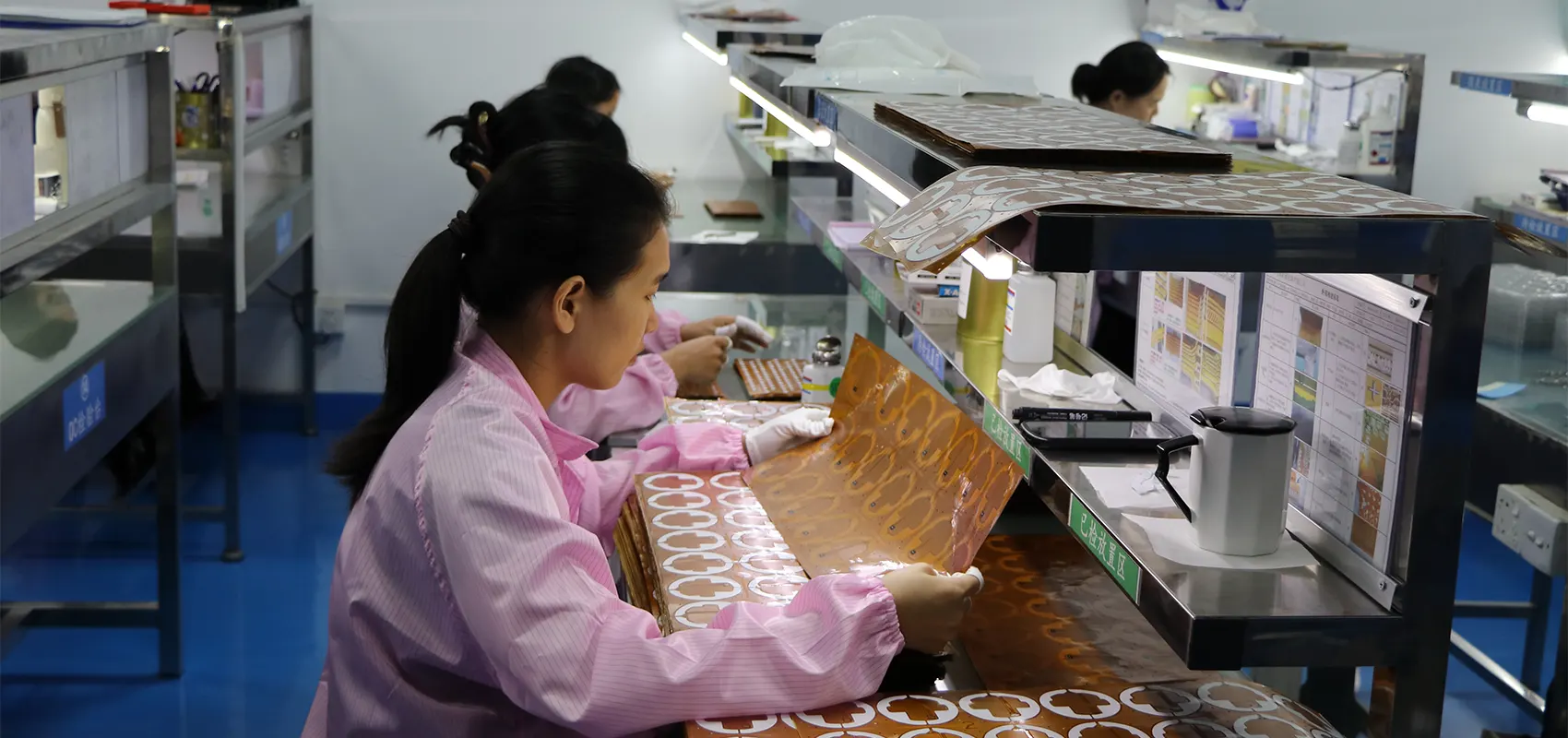

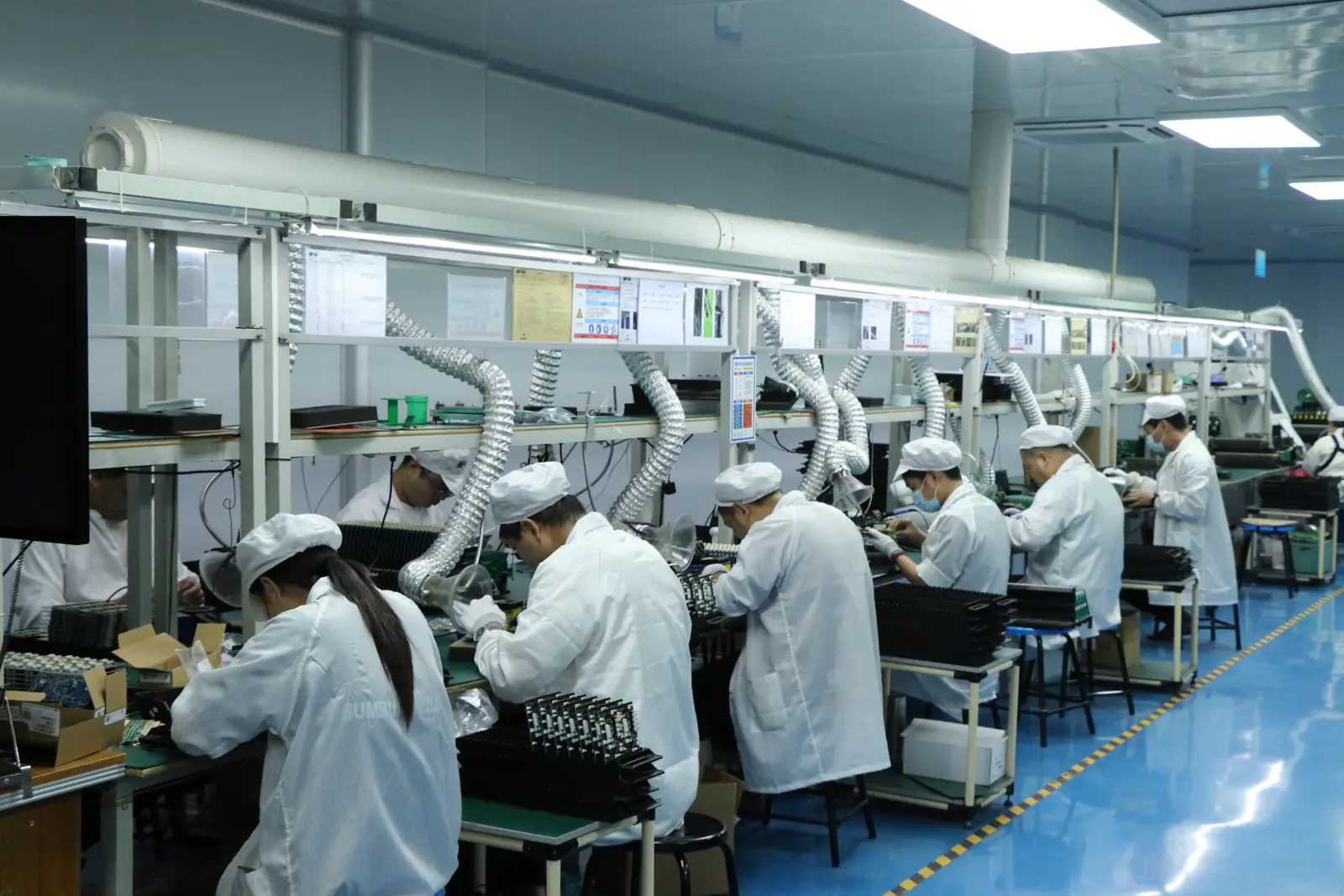

Prototype & Low-Volume PCB Assembly

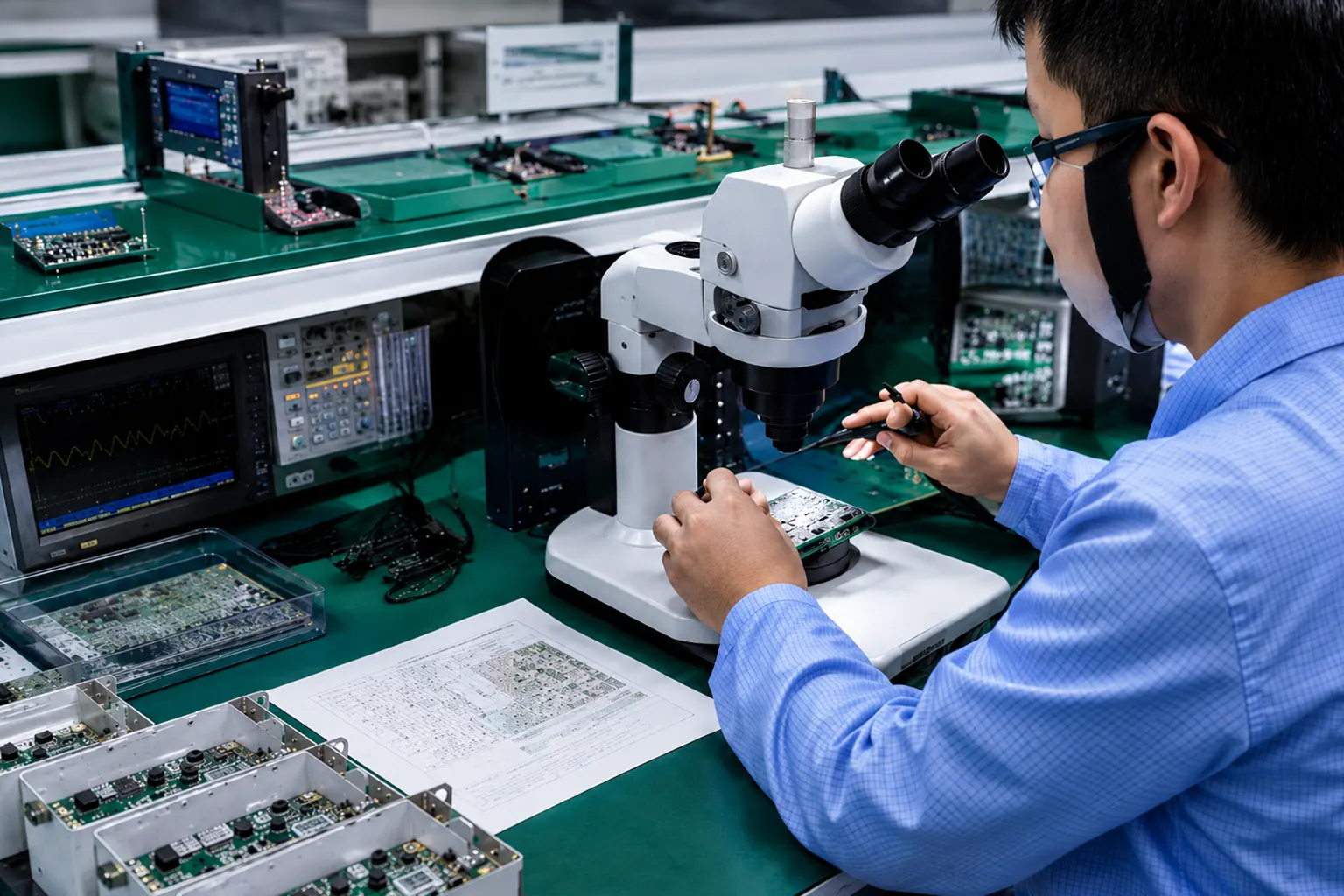

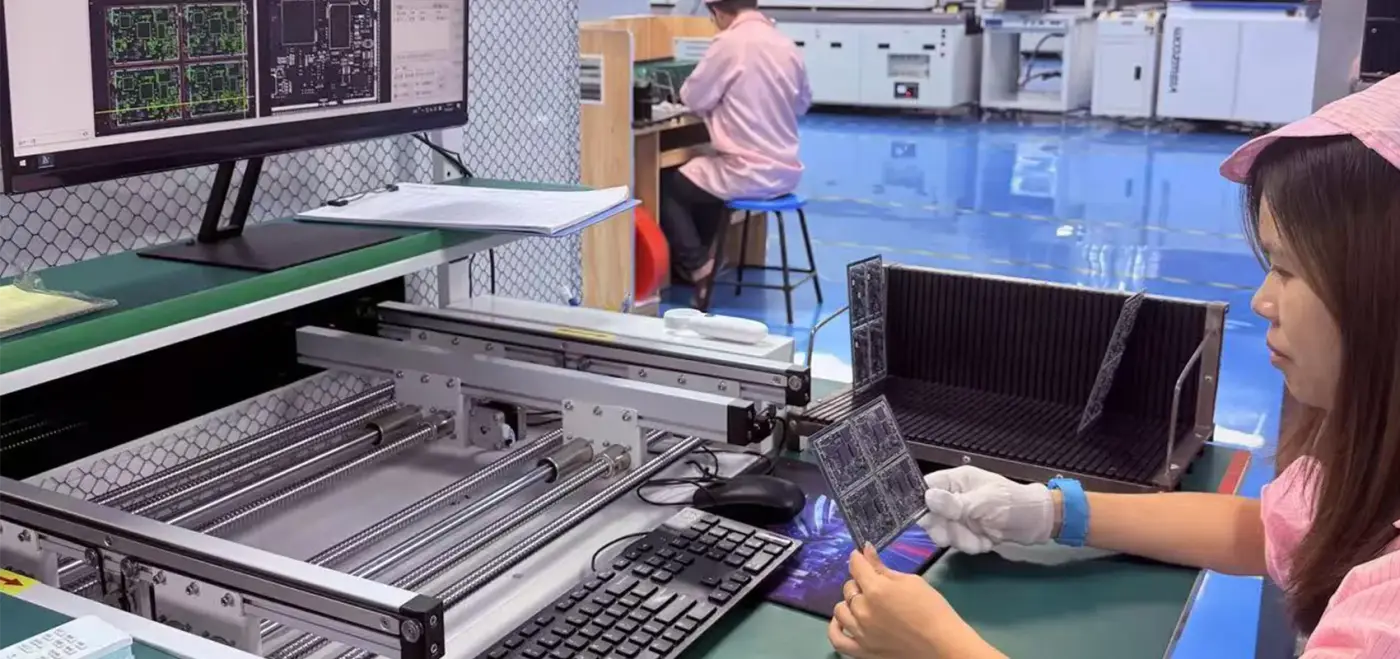

Visual Inspection

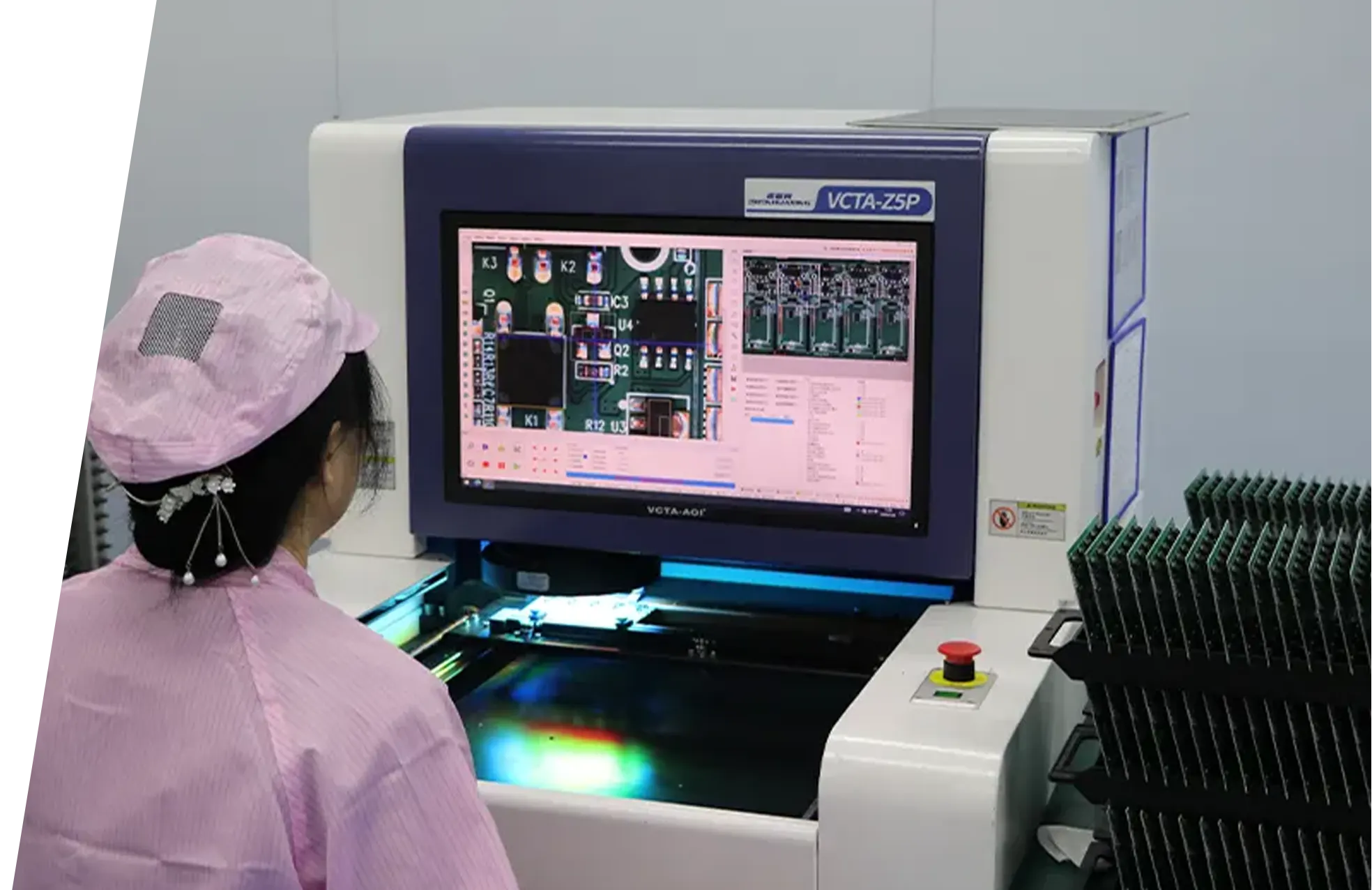

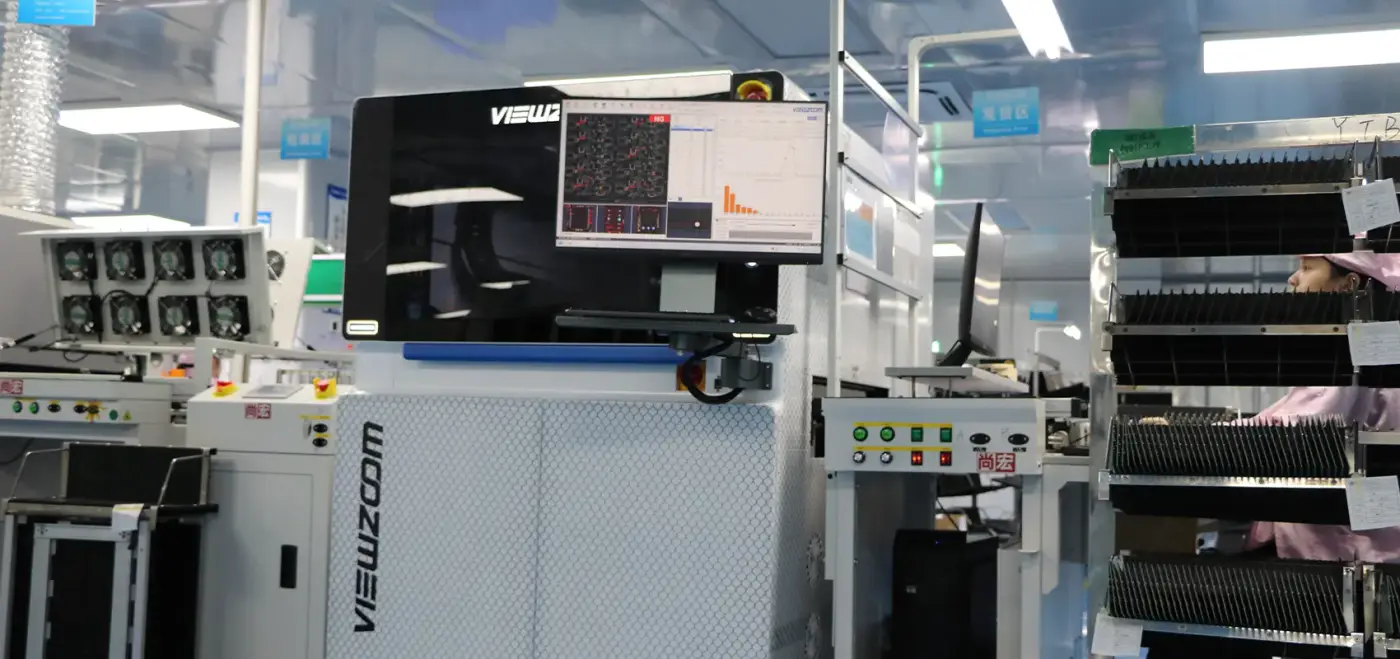

AOI Inspection

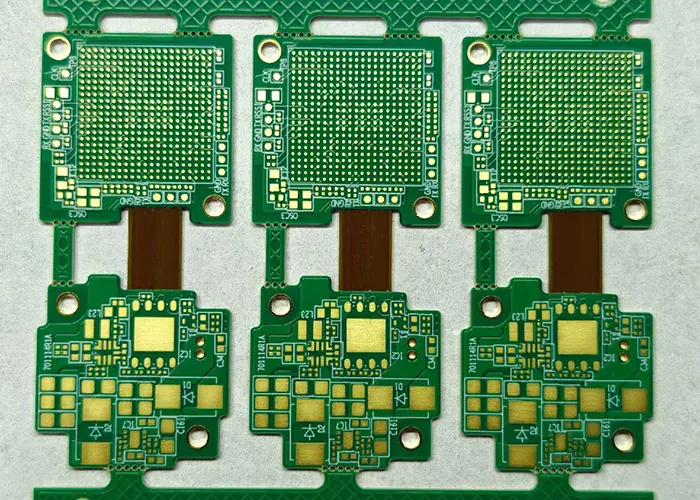

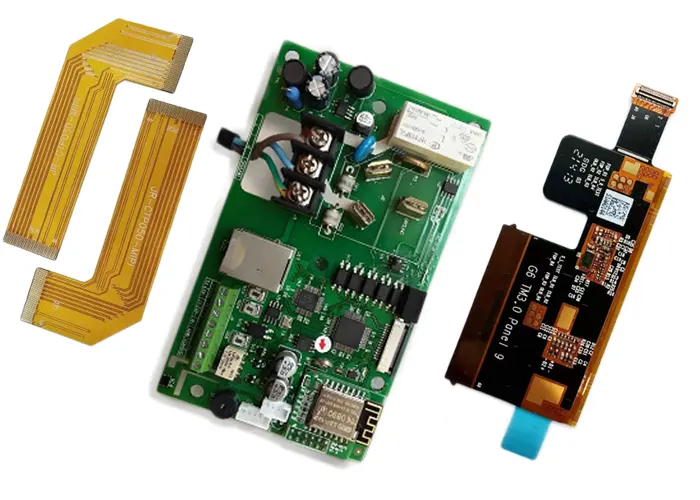

PCB Display Gallery
Benlida Circuit provides a range of bare PCB solutions, including standard and advanced board types for different applications. Review supported board types, manufacturing options, and project requirements on the PCB Manufacturing page.

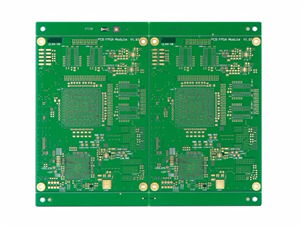

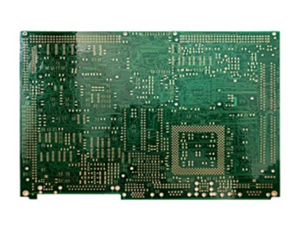

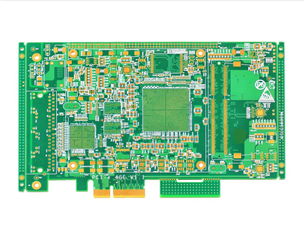

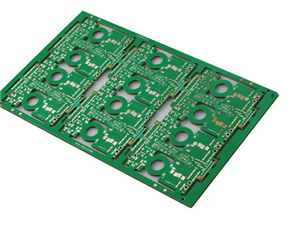

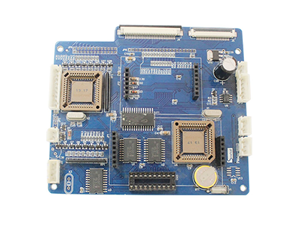

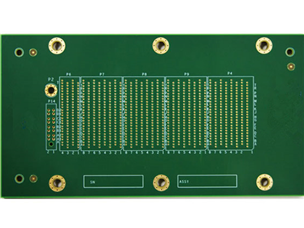

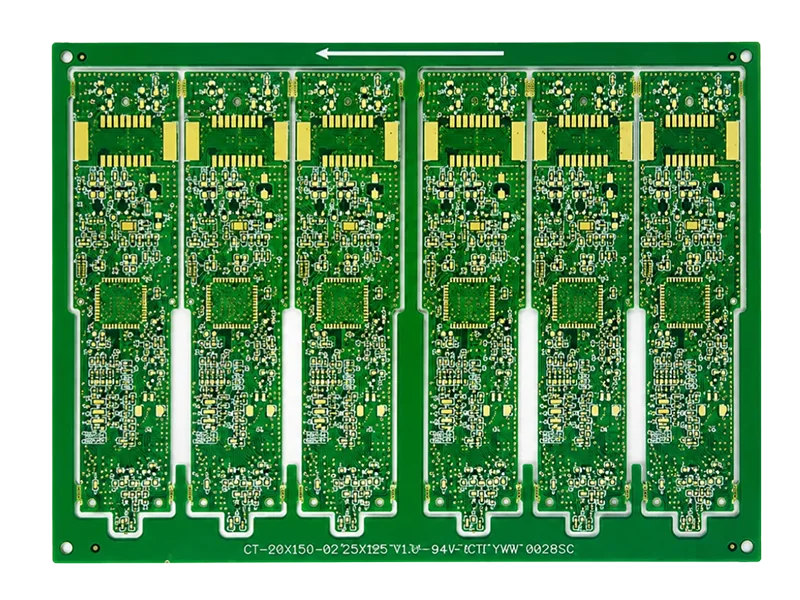

FR-4 PCB

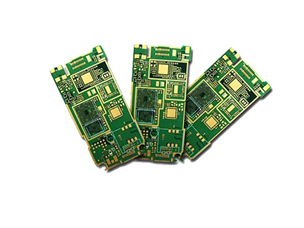

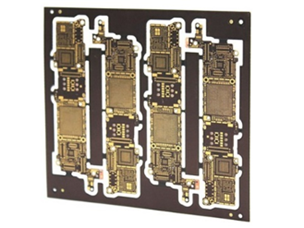

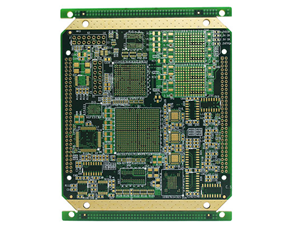

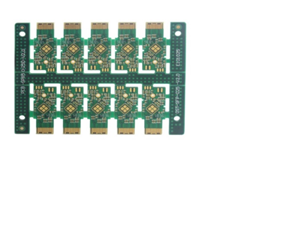

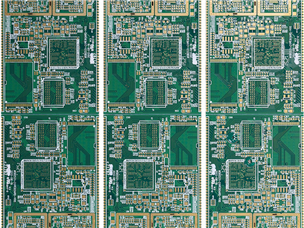

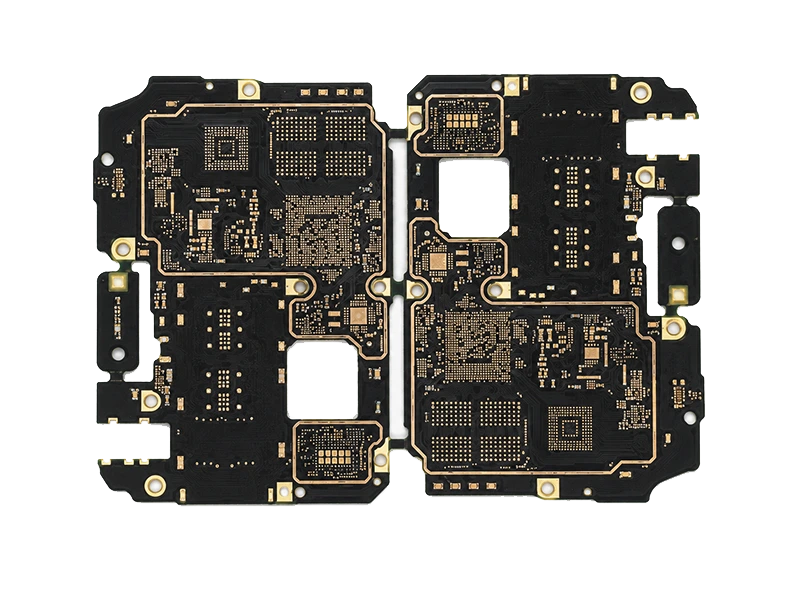

HDI PCB

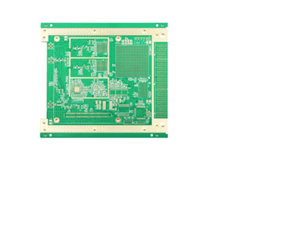

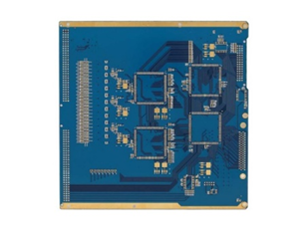

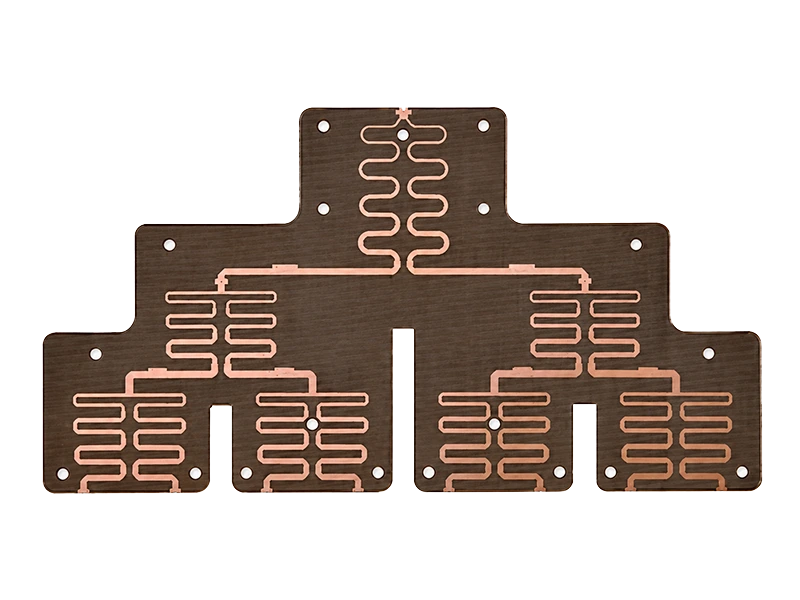

High-Frequency PCB

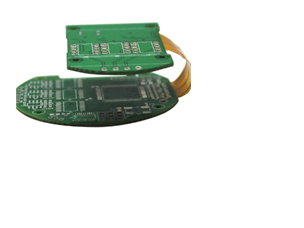

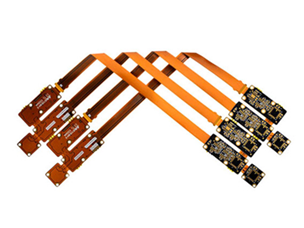

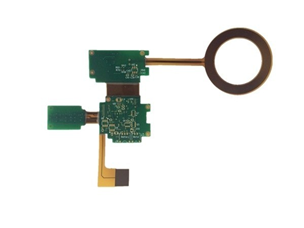

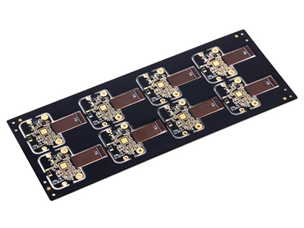

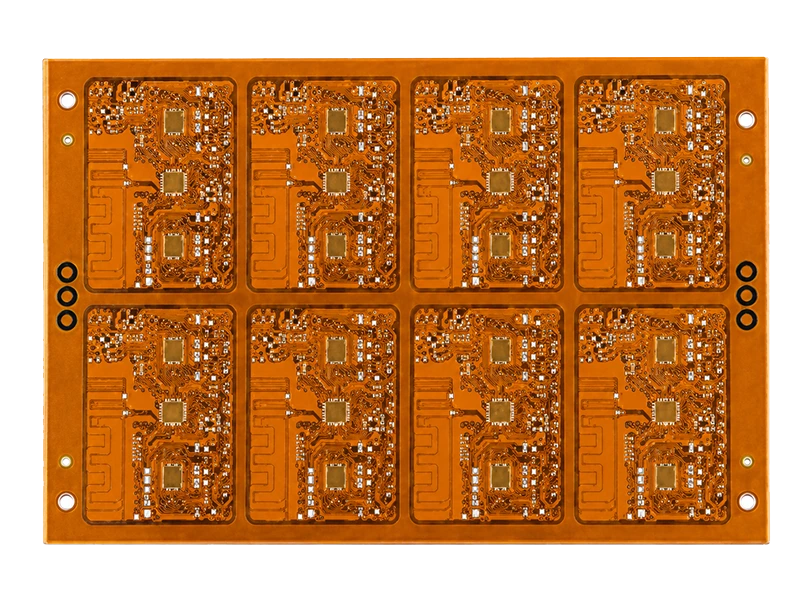

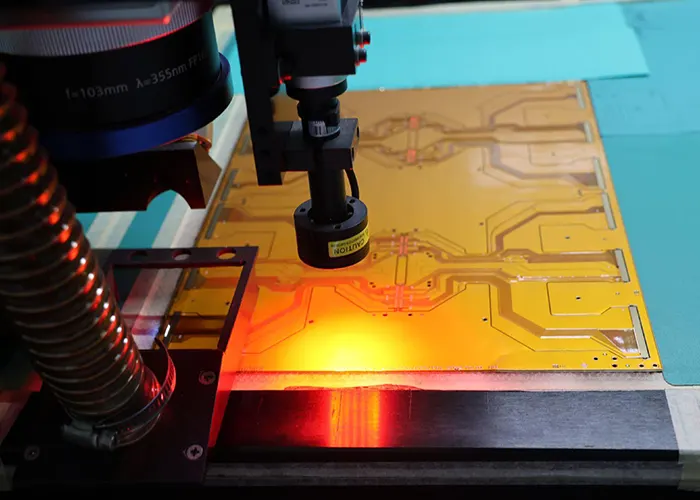

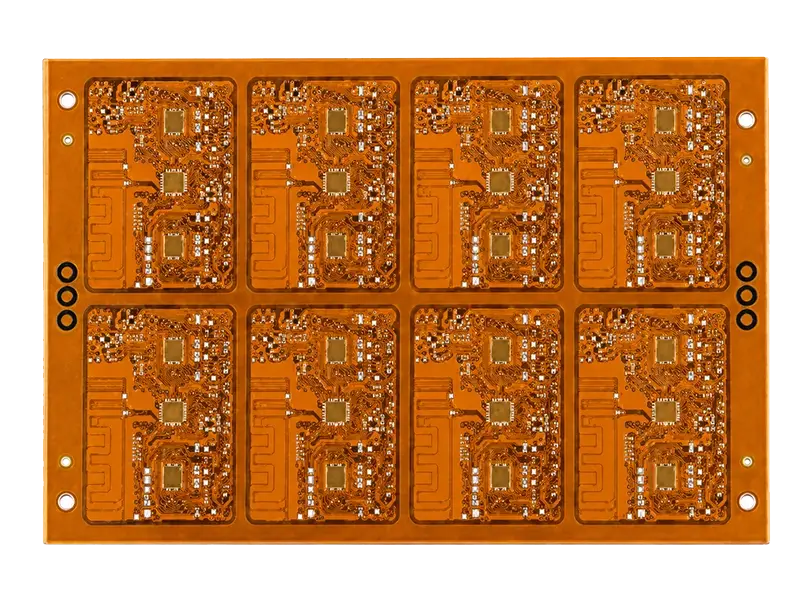

Flexible PCB

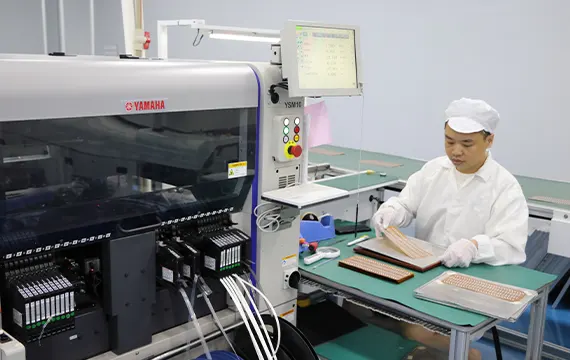

Advanced Manufacturing Strength & Reliable Delivery
From engineering support to mass production, Benlida provides reliable PCB & PCBA solutions with experienced teams, advanced facilities and strict quality control. With integrated manufacturing capabilities, professional engineering expertise and flexible production management, we help global customers achieve efficient product development, stable production and reliable delivery.
Employees
R&D Engineers
Production Lines
Production Support
With a team of skilled engineers and manufacturing professionals, Benlida delivers strong technical support, efficient project coordination, and reliable production services to customers across global markets.
Why Choose Benlida?
Explore Benlida’s factory resources, project-specific inspection and testing, and application-focused support from prototype review to production.
Support from Prototype to Production
Since 2011, Benlida has provided reliable PCB and PCBA solutions with professional engineering support, strict quality control, and flexible production capabilities. From rapid prototyping to mass production, we offer one-stop manufacturing services with fast delivery, competitive pricing, and stable quality to support customers worldwide.

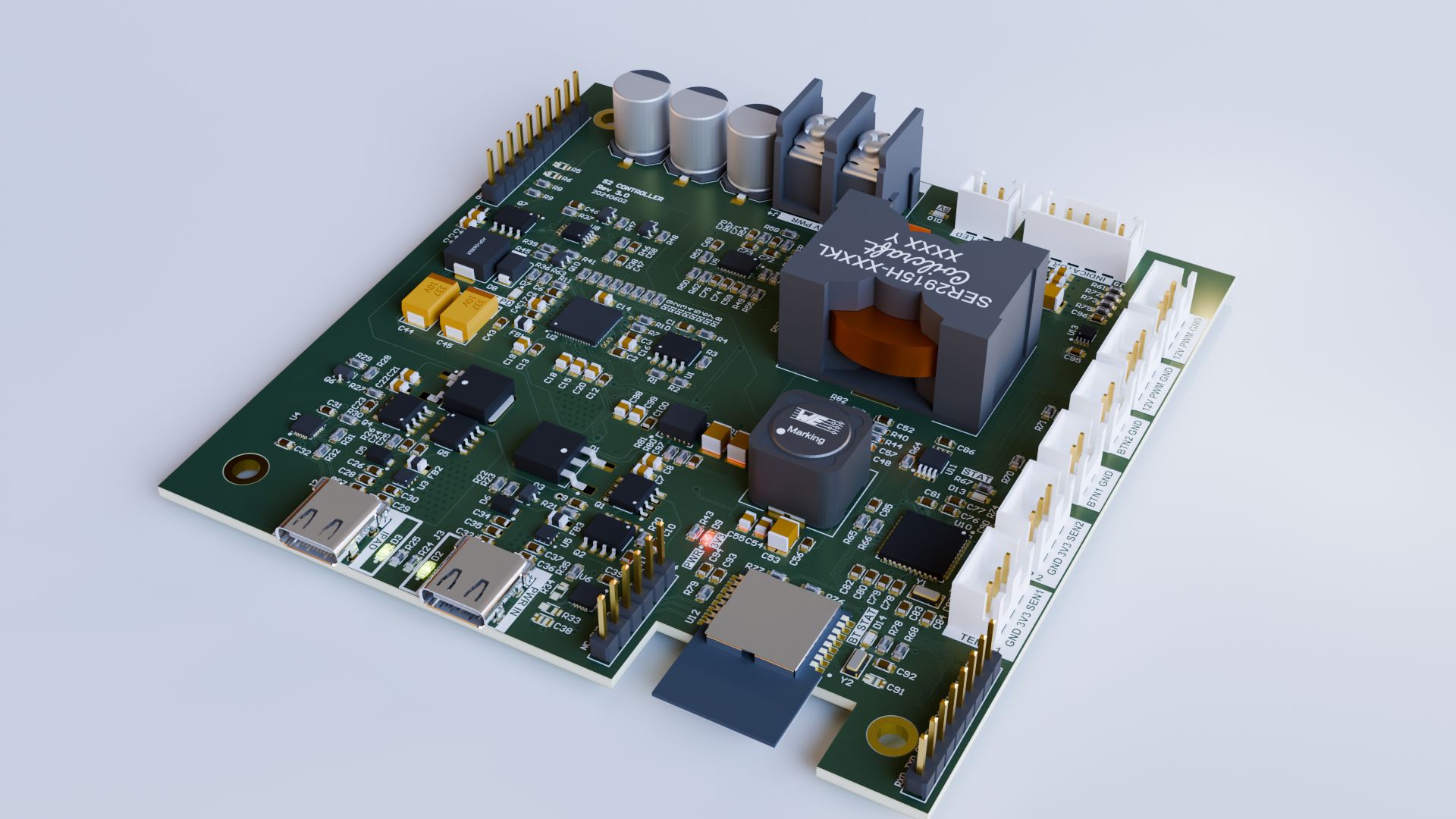

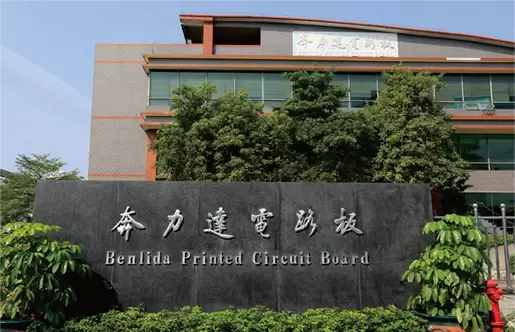

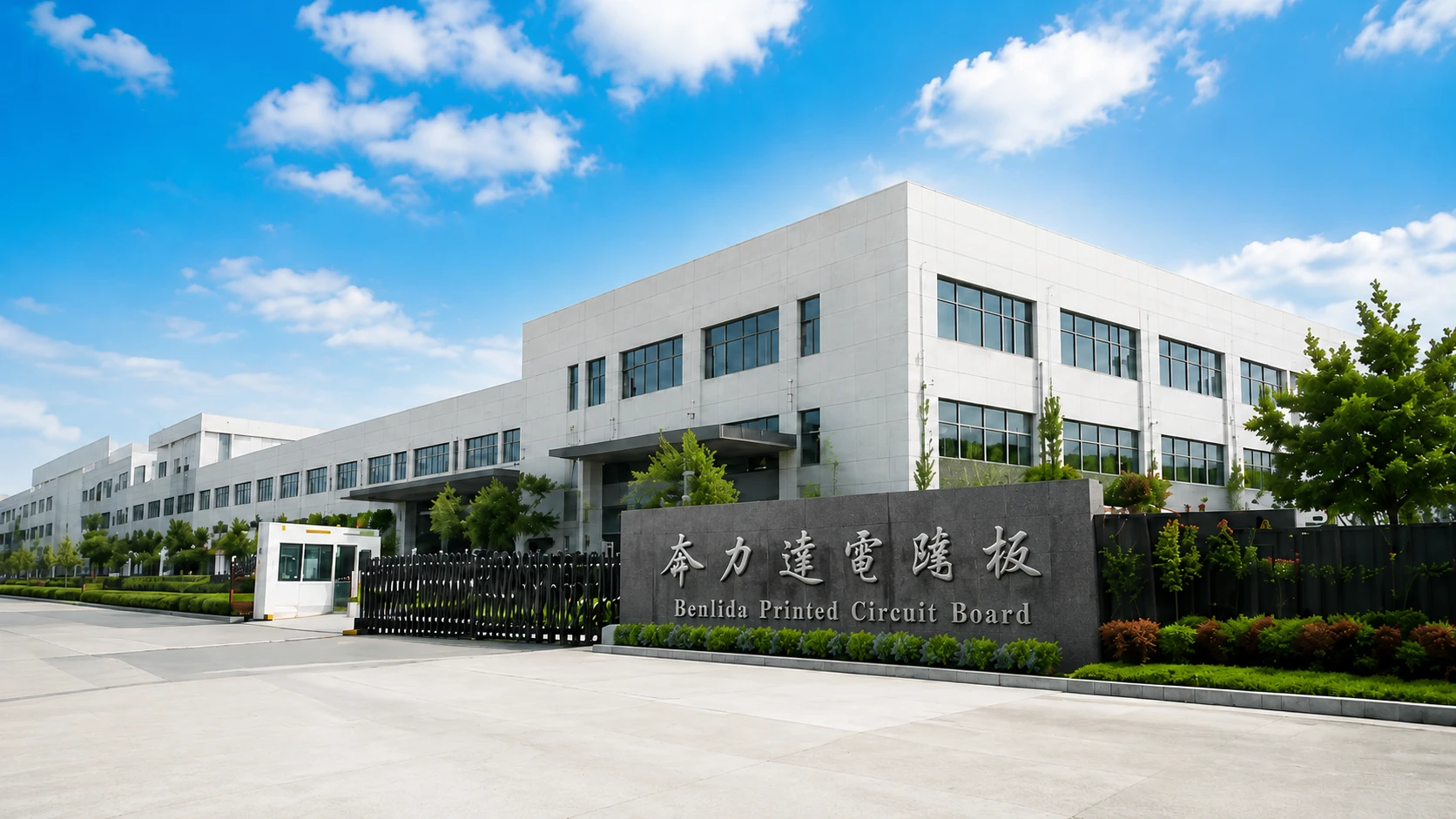

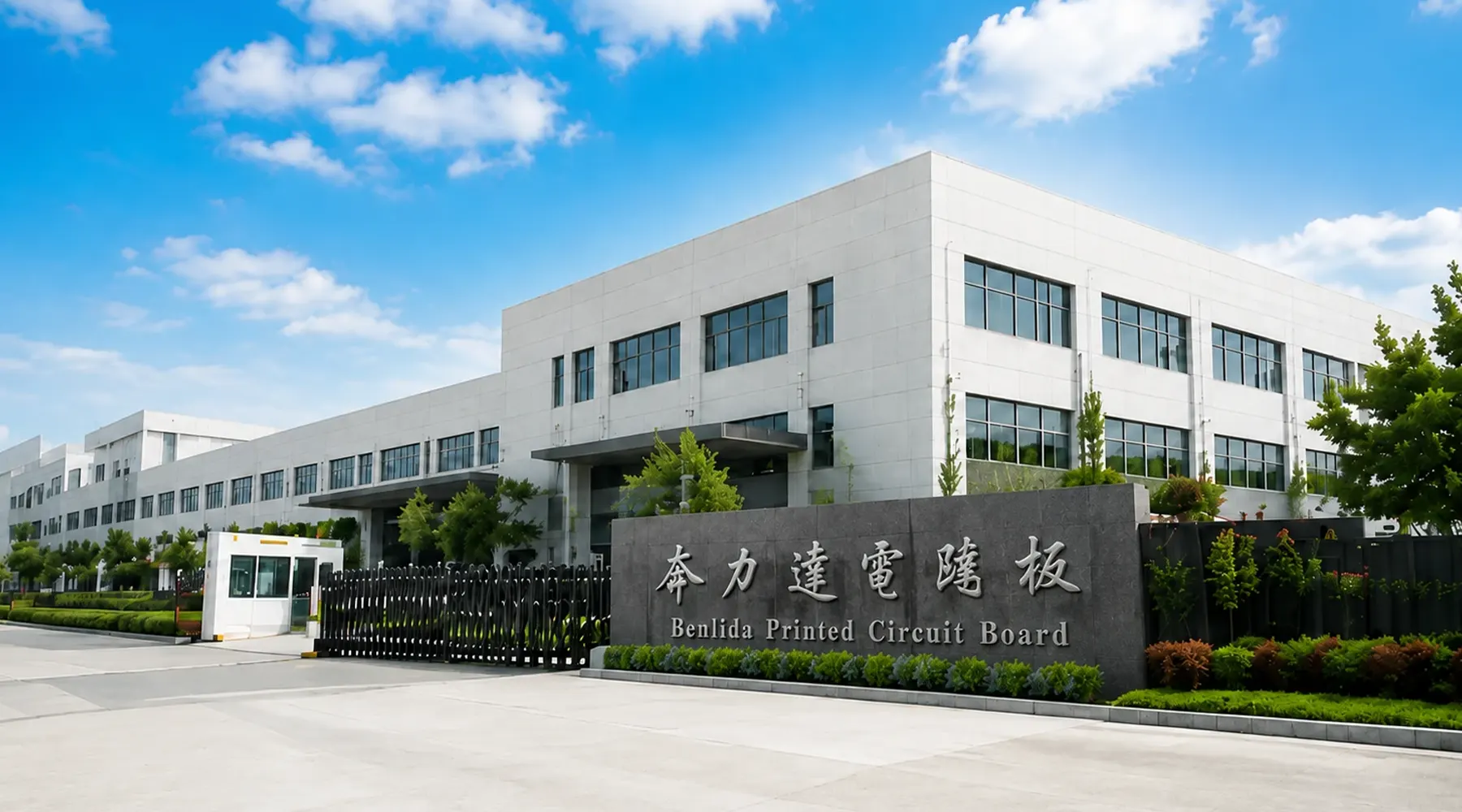

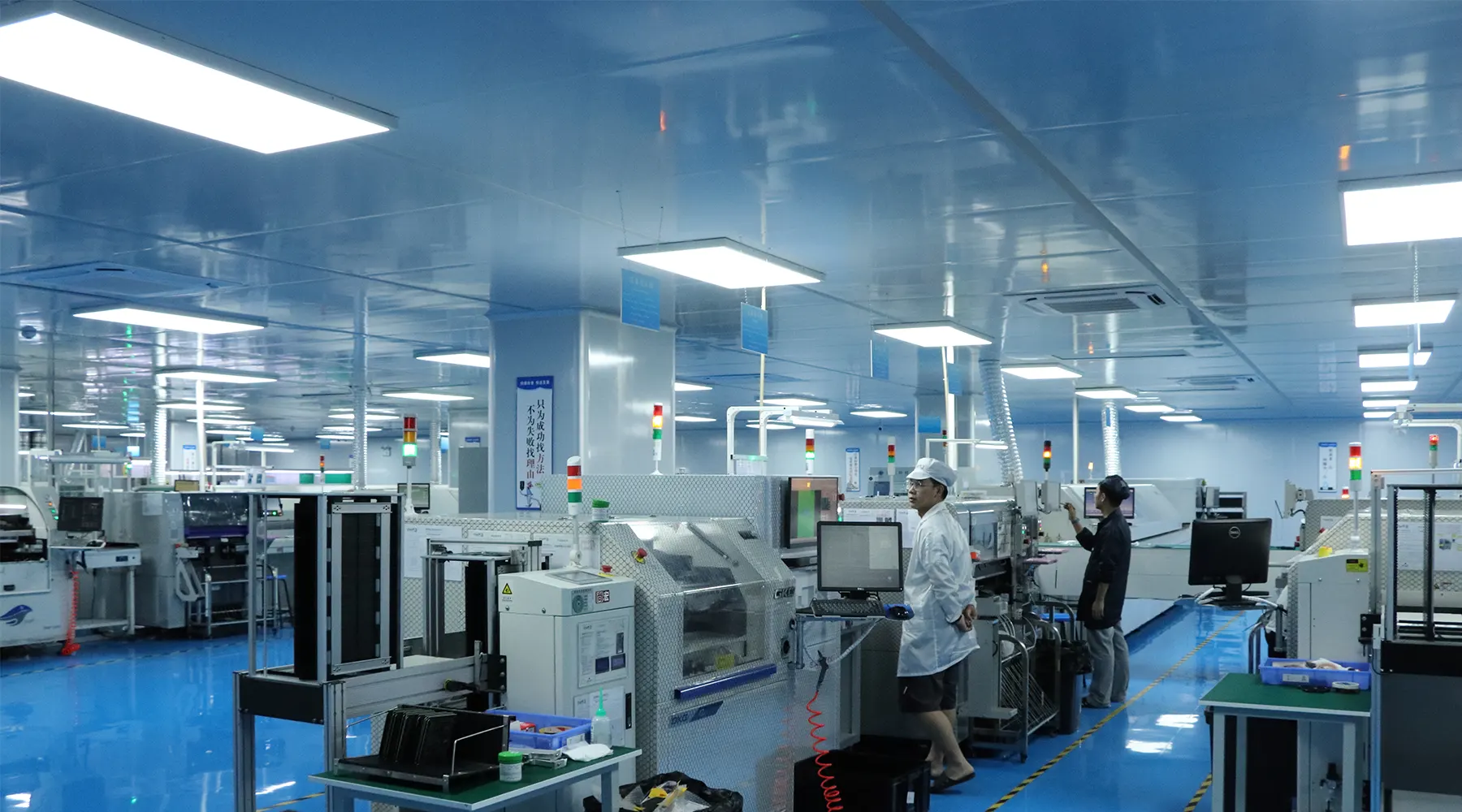

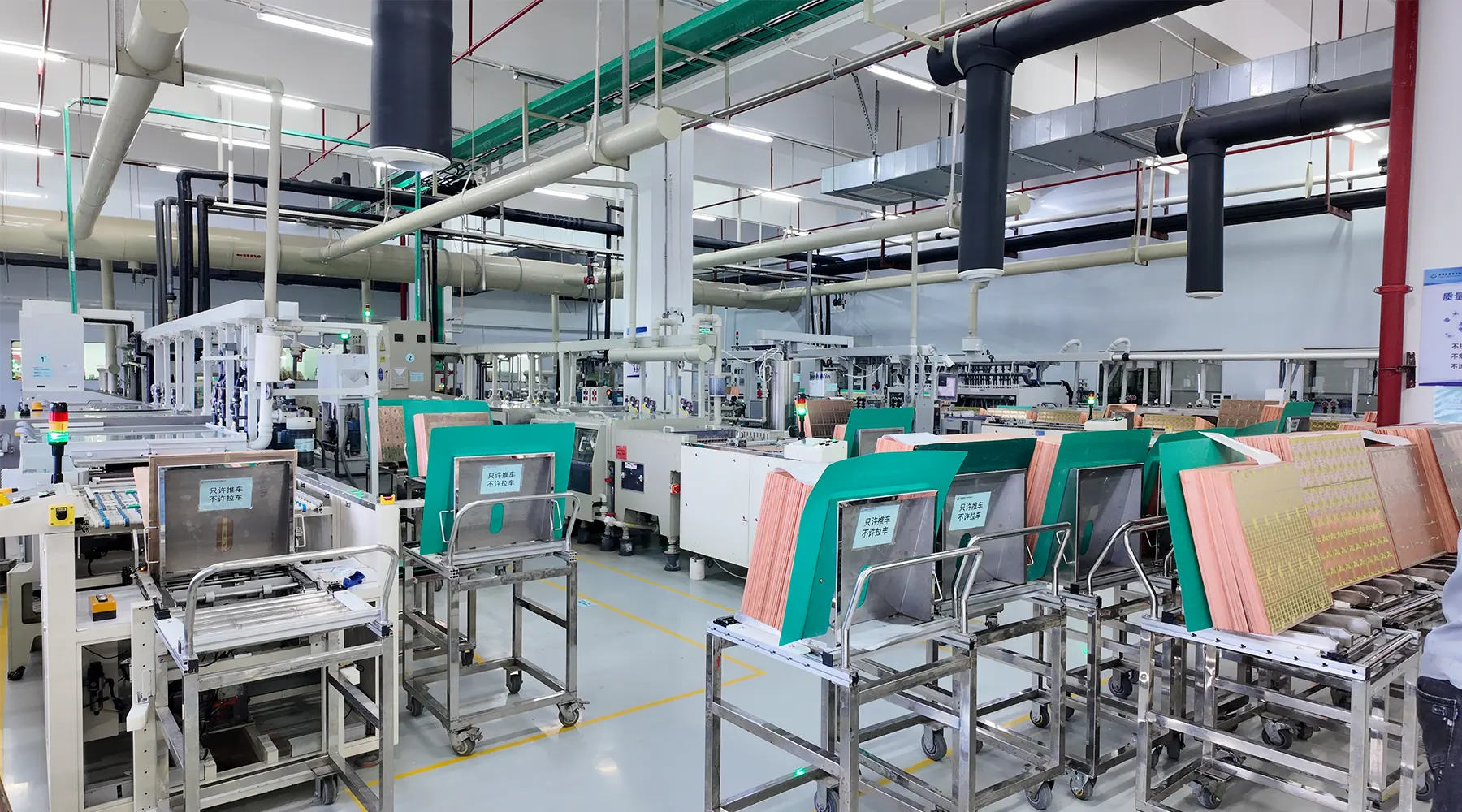

PCB & PCBA Factory in China
Benlida Circuit supports bare PCB fabrication and PCB assembly for prototype and production projects. Service scope and project requirements are reviewed according to the submitted files.
Inspection, Testing & Traceability
Inspection and testing are selected by project requirements and may include SPI, AOI, X-ray, visual inspection, flying-probe, ICT, electrical verification, and functional testing. For custom tests or programming, provide the procedure, acceptance criteria, fixtures, firmware, and reporting needs. Agreed results can be linked to the relevant build for traceability.
Industries We Serve
Benlida provides reliable PCB manufacturing and PCBA assembly solutions for a wide range of industries, including consumer electronics, industrial automation, medical devices, automotive electronics, telecommunications, and aerospace applications. With flexible production capabilities and professional engineering support, we help customers develop high-quality circuit board solutions for different application requirements.

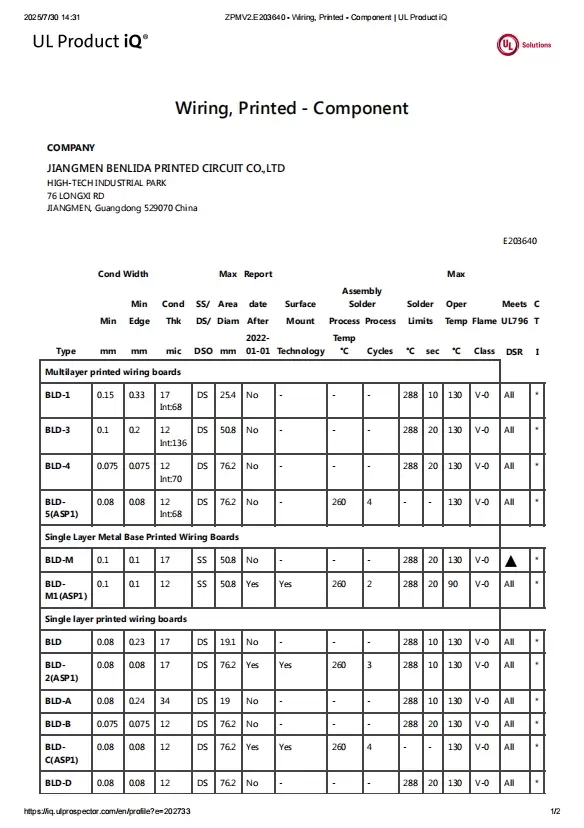

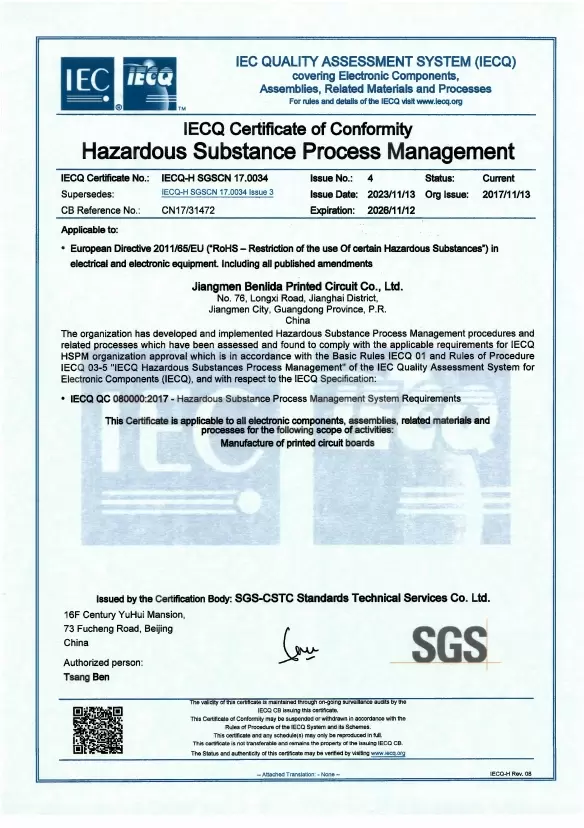

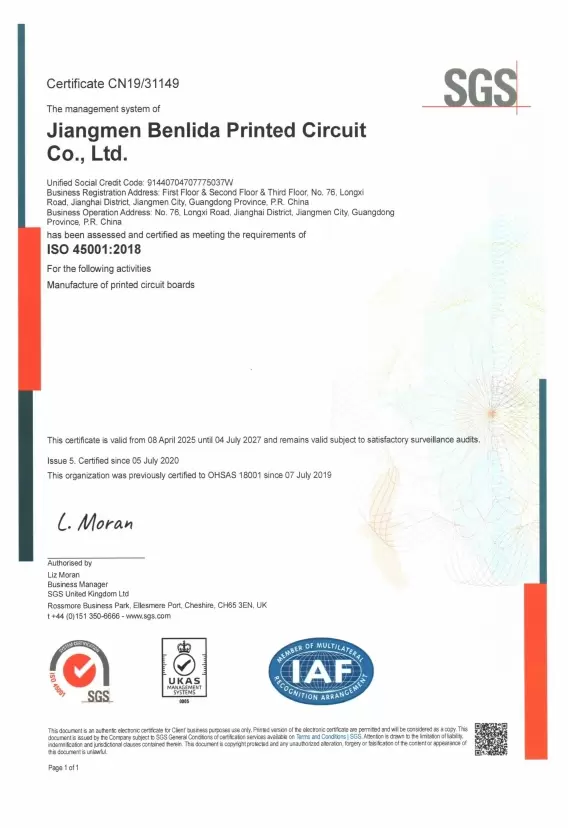

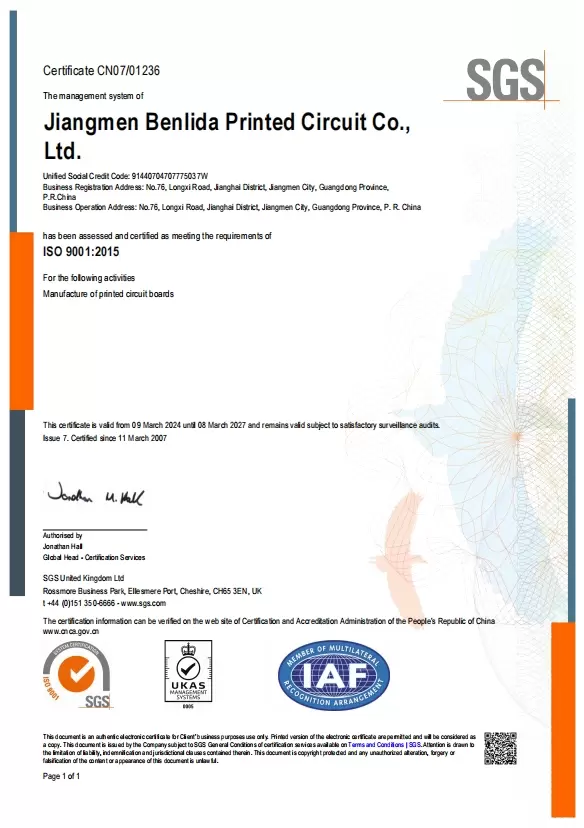

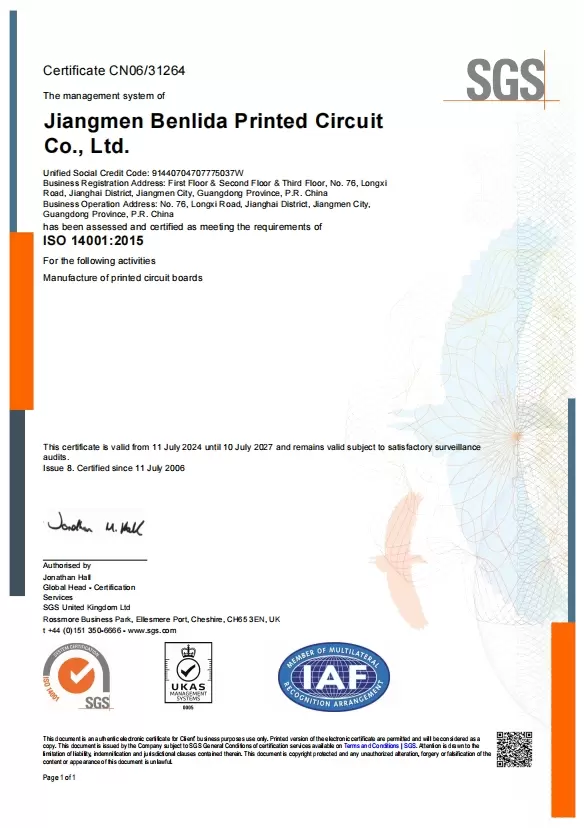

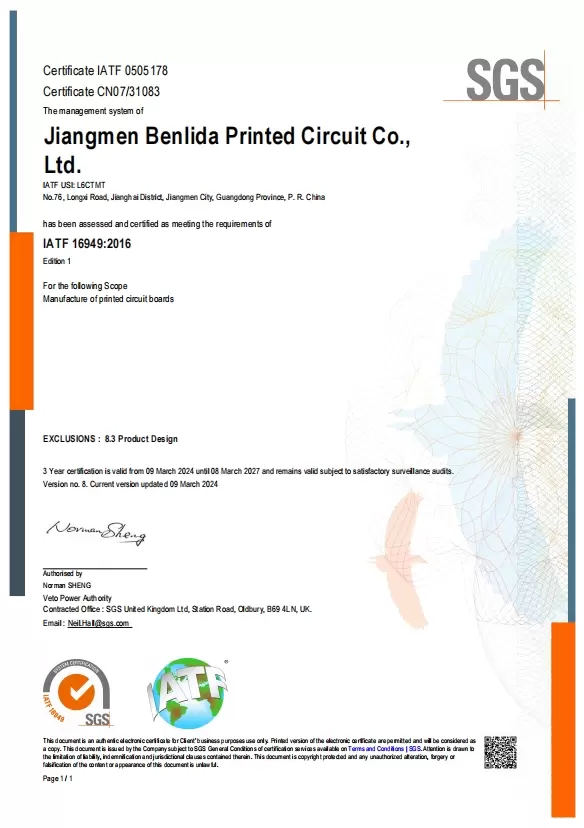

Our Certificates
Benlida Circuit is a professional PCB manufacturer and PCB assembly manufacturer, specializing in PCB manufacturing and SMT assembly services with a strong track record since 2011. We hold multiple international certifications that demonstrate our commitment to quality, safety, and environmental responsibility.
One-Stop PCBA Service Process
Complete, revision-controlled files help reduce engineering questions and keep the quotation aligned with the intended build. Benlida reviews the submitted package, identifies missing or conflicting information, and confirms the quoted scope, acceptance criteria, documentation, target schedule, and deliverables before production.
Files for PCB and PCBA Quotation
PCB fabrication: Provide the current Gerber files, NC Drill data, fabrication drawing, layer structure or stack-up, material, finished thickness, finished copper, surface finish, board or panel dimensions, quantity, revision, and any impedance, tolerance, testing, documentation, or target-schedule requirements.
PCB assembly: Provide all applicable PCB data plus the BOM, pick-and-place or centroid file, assembly drawings, quantity, revision, component-supply preference, approved alternatives, do-not-install items, programming requirements, test requirements, labeling, final assembly, and packaging instructions.
BOM: Include the manufacturer name and part number, quantity, reference designator, description or package, do-not-install items, and approved alternatives. Keep reference designators consistent across the BOM, placement file, and assembly drawings.
Testing and programming: If either service is required, include the procedure, pass/fail limits, fixture or interface information, firmware or software version, operating conditions, sampling requirement, expected output, and report requirement.
Revision control: Use one current revision across all files. Clearly identify any files that replace earlier versions.

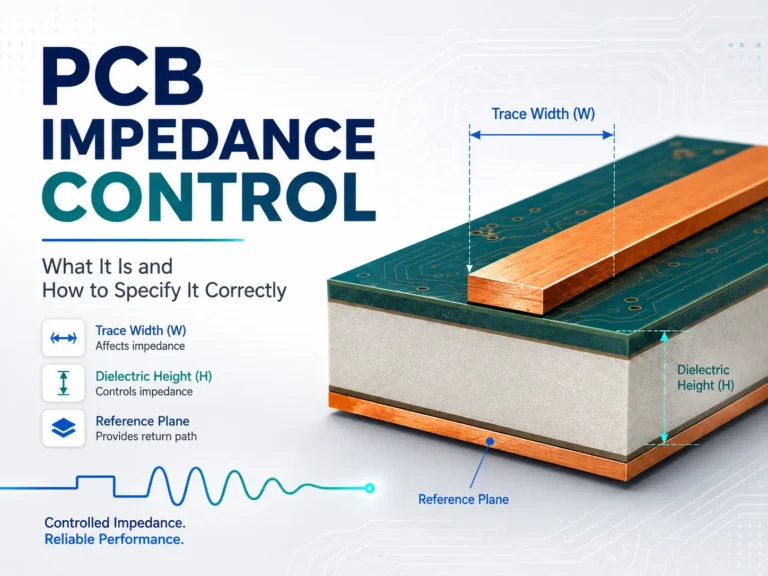

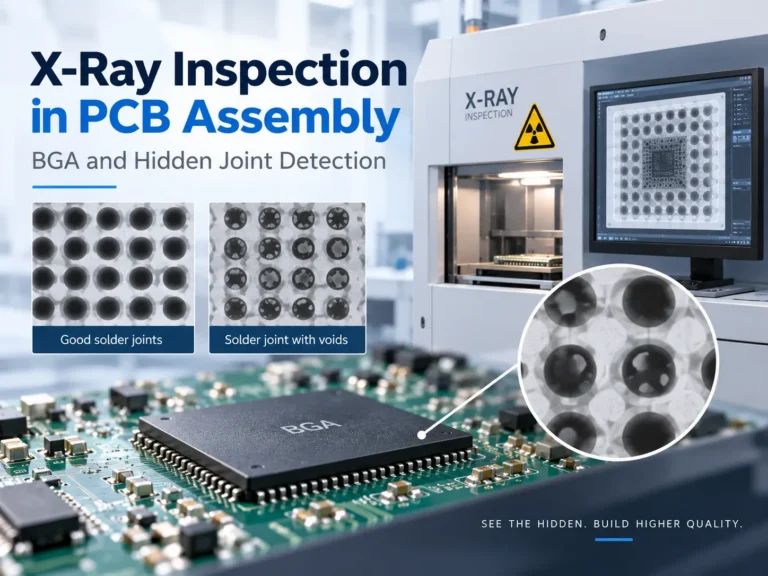

Recent Blogs
Explore the latest PCB and PCBA industry insights from Benlida, covering circuit board technologies, manufacturing processes, material selection, and quality control. Our technical articles provide valuable knowledge for engineers and businesses seeking reliable PCB solutions.
PCB & PCBA Manufacturing FAQs
Quick answers about combined PCB and PCBA projects, manufacturing feasibility, component sourcing, and project-specific quality requirements.
Can PCB fabrication and PCB assembly be included in the same project?
Yes. The quoted scope may include PCB fabrication, component sourcing, assembly, inspection, testing, programming, box build, and packaging. Only the services listed in the approved quotation are included.
Can every listed PCB capability be combined in one design?
No. Feasibility depends on the combination of material, layer count, board thickness, copper, hole and via structure, trace and spacing, surface finish, board size, impedance, and other project requirements. Benlida confirms the applicable limits against the submitted revision before quotation.
Which component sourcing models are available for PCBA projects?
Turnkey, partial-turnkey, and consigned component models are available. State the preferred model in your RFQ and provide complete manufacturer part numbers, approved alternatives, quantities, do-not-install items, and the current revision.
How are inspection, testing, programming, and traceability requirements confirmed?
The applicable scope depends on the board, assembly, quantity, acceptance criteria, and project requirements. Submit the required procedure, pass/fail limits, fixture or interface details, firmware or software version, sampling requirement, expected output, and report format. The quotation confirms the applicable method, coverage, records, and traceability.
How should project revisions be submitted?
Use one current revision across the Gerber files, BOM, placement data, and drawings. Clearly identify every file that replaces an earlier version. If files change after quotation, list each changed item and wait for confirmation before the revised package is released for production.
What affects PCB or PCBA lead time?
Lead time depends on file completeness, board structure, material and component availability, quantity, required processes, inspection and testing requirements, and the current production schedule. The applicable schedule is confirmed in the quotation for each project.
